High-performance digital signal control with integrated analog, security and functional safety capabilities
The dsPIC33AK256MPS306 Digital Signal Controller (DSC) from Microchip combines a high-performance 200 MHz 32-bit architecture with advanced analog integration, floating-point processing and functional safety support. Designed for next-generation digital power, industrial automation, motor control and sensing applications, the device delivers exceptional real-time performance while simplifying system design.
Featuring single- and double-precision floating-point capabilities, high-speed ADCs, integrated operational amplifiers, fast comparators and advanced PWM modules, the dsPIC33AK256MPS306 enables precise control and measurement in demanding embedded applications. Its compact footprint makes it suitable for space-constrained designs while providing the computational power required for sophisticated control algorithms.
The device also incorporates hardware security features including cryptographic accelerators, secure boot support, secure firmware updates and post-quantum cryptography readiness. Combined with development processes aligned to ISO 26262 and IEC 61508 functional safety standards, the dsPIC33AK256MPS306 provides a robust platform for safety-critical and security-conscious applications.
dsPIC33AK256MPS306 Family Block Diagram
dsPIC33AK256MPS306 Datasheet
Learn more: dsPIC33AK128MC106 DIM
About Microchip
A compact and cost-effective development board for evaluating the dsPIC33A DSC family. It features a 200 MHz dsPIC33AK512MPS506 device with integrated floating-point processing, high-speed ADCs and advanced analog peripherals.
A development module designed to demonstrate digital power applications using the dsPIC33AK512MPS506 DSC. It works with compatible power boards to evaluate control and power conversion designs.

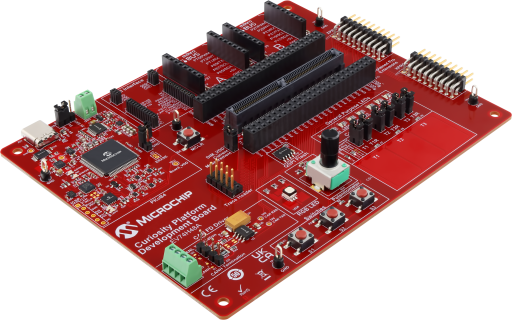

A full-featured development platform that supports both dsPIC33A DSCs and PIC32A MCUs through interchangeable DIM modules. It enables rapid prototyping, evaluation and application development.
A general-purpose DIM designed for use with the dsPIC33 Curiosity Platform Development Board. It showcases the capabilities of the dsPIC33AK256MPS306 family across a broad range of embedded applications.

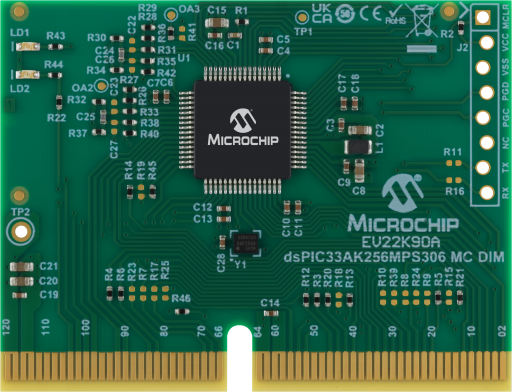

A dedicated motor control evaluation module featuring the dsPIC33AK256MPS306 DSC. It enables rapid development and testing of motor control algorithms and drive systems.
