Manufacturer Part #
389FHXXC1-24D

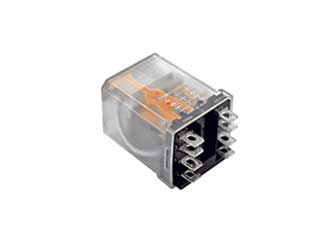

389F Series 30 A SPST-NO 24 VDC Flange Mount Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Schneider Electric | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Tray Mounting Method:Flange Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Schneider Electric 389FHXXC1-24D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=389FHXXC1-24D&field4=Schneider Electric&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/389fhxxc1-24d-schneider-electric-4242491
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=389FHXXC1-24D&field4=Schneider Electric&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/389fhxxc1-24d-schneider-electric-4242491
Schneider Electric 389FHXXC1-24D - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 30A |
| Coil Resistance: | 400Ω |
| Switching Voltage: | 600V |
| Contact Material: | Silver Alloy |
| Operating Temp Range: | -40°C to +55°C |
| Height - Max: | 35.72mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 4 |
| Mounting Method: | Flange Mount |
Features & Applications
The 389F Series is a Flange Mount Power Relay. This series offers an ideal solution for a variety of application requirements due to the broad range of available contact ratings and a variety of panel, DIN and socket mount options and accessories.
Features:
- Rated up to 50 A
- Socket compatible models available
- Flux tight versions available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
Applications:
- Automation Panels
- Process Controls
- Motor Control
- Conveyor Control
- Food & Beverage
- Anti-Condensation Equipment
- Industrial Cooking Equipment
- Filtration Systems
- HVAC & Refrigeration
- Anti-Condensation Equipment
- Compressor Control
- Blower Control
- Motorized Duct/Vent Control
- Air Conditioners
- Water Heaters??
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
2 Weeks
Quantity
Unit Price
10
$19.43
20
$19.29
30
$19.21
40
$19.15
50+
$18.96
Product Variant Information section
Available Packaging
Package Qty:
10 per Tray
Mounting Method:
Flange Mount
