HARTING | 09031642921

Manufacturer Part #

09031642921

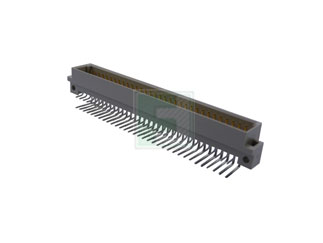

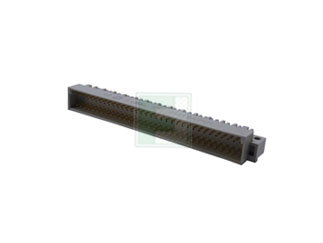

Type C 64 Position 2.54 mm Pitch Male Right Angle DIN41612 Connector

ECAD Model:
Mfr. Name: HARTING
Standard Pkg:
Product Variant Information section
Date Code: 2524
Product Specification Section
HARTING 09031642921 - Technical Attributes
Attributes Table
Type: Board to Board (Backplane)
Style/Orientation: Plug
No of Positions: 64
No of Rows: 3
Pitch: 2.54 mm
Termination: Solder Pins/Tails
Material: Thermoplastic Resin
Contact Plating: Gold
Contact Resistance: 20mΩ
Current Rating: 2A
Operating Temp Range: -55°C to +125°C
Color: Grey
Mounting Method: Through Hole
Features & Applications
DIN 41612 signal connectors encompass the types B, C, M, Q and R with the complementary types 2B, 2C, 2Q, R(HE 11) and 2R for various termination technologies (solder, crimp, press-fit and SMC).DIN41612 Type C 09031642921 is a 64 position,male,right-angle, 2.54mm connector with solder pins.
Pricing Section
Global Stock:
100
USA:
100
On Order:Order inventroy details
150
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2.89
USD
Quantity
Unit Price
1
$2.89
20
$2.83
50
$2.79
125
$2.76
300+
$2.68
