Manufacturer Part #
IMSQ120R026M2HHXUMA1

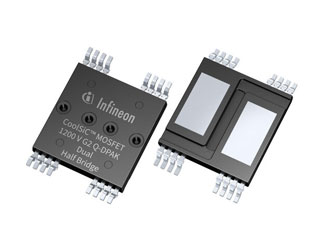

CoolSiC Series 1200 V 26 mΩ 59 A ±10 V SiC MOSFET Power IC - PG-HDSOP-16-U03
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Cut Tape Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon IMSQ120R026M2HHXUMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=IMSQ120R026M2HHXUMA1&field4=Infineon&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--silicon-carbide-mosfets-sic-mosfets/imsq120r026m2hhxuma1-infineon-6200626
Infineon IMSQ120R026M2HHXUMA1 - Technical Attributes
Attributes Table
| Technology: | SiC (Silicon Carbide) Schottky |
| Product Status: | Active |
| Fet Type: | N-Ch |
| No. of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 1.2kV |
| Drain Current: | 83A |
| Input Capacitance: | 1990pF |
| Power Dissipation: | 410W |
| Operating Temp Range: | -55°C to +175°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
26 Weeks
Quantity
Unit Price
1
$14.97
10
$14.72
40
$14.57
125
$14.45
400+
$14.26
Product Variant Information section
Available Packaging
Package Qty:
750 per Cut Tape
Mounting Method:
Surface Mount
