Manufacturer Part #
102241-1

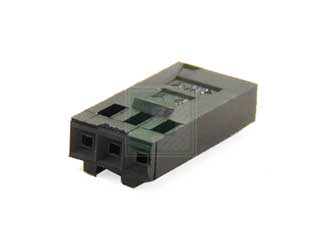

AMPMODU 3 Position Single Row 2.54 mm Pitch Wire Applied Detent Latching Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bag | ||||||||||
| Date Code: | 2407 | ||||||||||
TE Connectivity 102241-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:1. Please be aware the 108-25020 document have been updated to improve clarity, product speci cations for di erent pressure type contacts 108-25007 and 108-25021 is incorporated into one specification 108-25020. 2. There is a change in contact retention force- Before: contact retention force applied with 5 Lbs axial load. After: contact retention force Applied with 3 Lbs axial load. 3. The contact retention force has been adjusted from 5 lbs to 3 lbs (axial load). 4. Product performance (electrical / environmental) remain unchanged. 5. In the attached test report, PN 87922-4 was tested as a representative sample for the affected part numbers listed belowReason for Changes:1. Resin change to LCP in the MOD IV family 2. Standardizing product requirements similar to Product like MTE receptacle and short point contact receptacle.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=102241-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/102241-1-te-connectivity-3847967
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=102241-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/102241-1-te-connectivity-3847967
TE Connectivity 102241-1 - Technical Attributes
| Type: | Housing |
| No of Positions: | 3 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The 102241-1 is a Part of AMPMODU Series with 3 Position 2.54 mm Pitch wire to Board Crimp Socket Housing Receptacle Connector.
Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Connector Series = Mod IV
- Housing Configuration = Both Ends Closed
- Mating Connector Lock Type = Detent Latching
- Contact - Rated Current (A) = 3
- Voltage Rating (VAC) = 250
- Termination Resistance (m?) = 12
- Insulation Resistance (M?) = 5,000
- Dielectric Withstanding Voltage (V) = 750
- Centerline (mm [in]) = 2.54 [0.100]
- Number of Positions = 3
- Number of Rows = 1
- Contact Type = Socket
- Connector Style = Receptacle
- Mating Alignment Type = Latched
- Housing Color = Black
- UL Flammability Rating = UL 94V-0
- Housing Material = Nylon
View the 102241x Series of Sockets
Available Packaging
Package Qty:
1 per Bag
