More Information on Logic Gates...
What is a Logic Gate?
A logic gate implements a Boolean function and thus performs a logical operation on one or several logic inputs in order to produce a single logic output. A logic gate often uses diodes or transistors that act like electronic switches. Electronic logic gates differ from their relay-and-switch equivalents because they consume less power and are much faster and smaller. Also, contrary to a switch circuit, it is not possible for current to flow between the input and the output of a semiconductor logic gate. This is because a semiconductor logic gate acts as a high-gain voltage amplifier which sinks a tiny current at its input and produces a low-impedance voltage at its output. Another advantage of integrated circuit logic families is that they can be cascaded. The output of one gate can be wired to the inputs of one or more other gates.
Types of Logic gates
There are several different kinds of programmable logic gates at Future Electronics. We stock many of the most common types categorized by several parameters including family, logic circuit, number of functions, output characteristics, nominal supply voltage and packaging type. Our parametric filters will allow you to refine your search results according to the required specifications.
Logic gates from Future Electronics
Future Electronics has a wide range of programmable logic gates from several chip manufacturers that can be used for programming your circuits. By going through the selection you will find the right digital logic gate, AND gate, OR gate, CMOS logic gate, NOT gate, XOR gate, NOR gate, NAND gate, universal logic gate, electronic logic gate, transistor logic gate or chips for any type of circuit or IC that might require logic gates. Once you decide if you need a dual gate, quad gate, single gate of triple gate, you will be able to choose from their technical attributes and your search results will be narrowed to match your specific logic gate application needs.
We deal with several manufacturers. You can easily refine your logic gate product search results by clicking your preferred logic gate brand from the list of manufacturers below.
Applications for Logic Gates:
Logic circuits are found in several devices including multiplexers, arithmetic logic units, computer memory and registers. They are also used in microprocessors, some of which can contain over 100 million gates. Also, logic gates are the building blocks of digital electronics and are formed by the combination of transistors in order to realize some digital operations. Every digital product, including personal computers, mobile phones, tablets, calculators and digital watches also uses logic gates.
Choosing the Right Logic Gate:
With the FutureElectronics.com parametric search, when looking for the right logic gates, you can filter the results by category. We carry the following categories of logic gates:

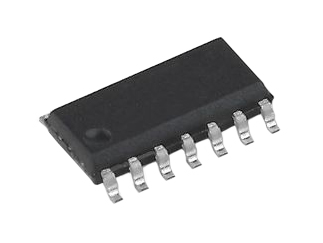

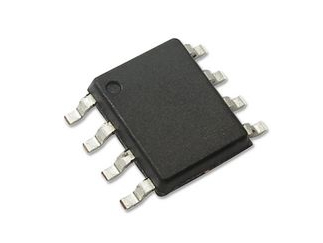

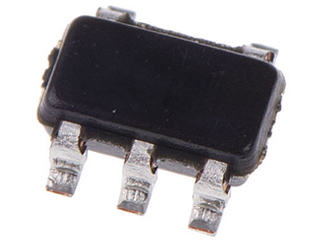

- Dual Gate
- Quad Gate
- Single Gate
- Triple Gate
Once you choose the logic gate category, you can narrow them down by various attributes: by logic circuit, number of functions and nominal supply voltage to name a few. You will be able to find the right logic gate chip that can be used for programming your circuits such as a digital logic gate, CMOS logic gate, NOT gate, AND gate, OR gate, NAND gate, XOR gate, NOR gate, universal logic gate, electronic logic gate, transistor logic gate or chips for any type of IC or circuit that might require logic gates by using these filters.
Logic Gates in Production Ready Packaging or R&D Quantities
If the quantity of logic gates you require is less than a full reel, we offer to our customers several of our programmable logic gates in tray, tube or individual quantities that will help you avoid unneeded surplus.
Future Electronics also offers its clients a unique bonded inventory program designed to eliminate potential problems that may arise from an unpredictable supply of products that could contain raw metals and products with erratic or long lead times. Talk with your nearest Future Electronics branch and find out more on how you and your company can avoid possible shortages.
