TE Connectivity — Industrial Mini I/O Field Installable Connectors CAT5

Features

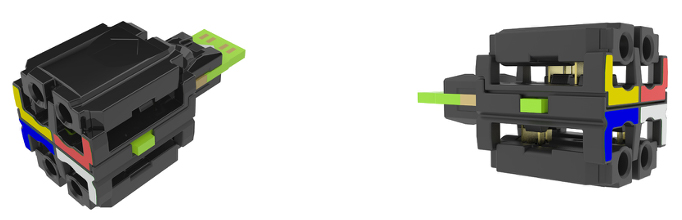

• Consists of only three parts: Termination unit and outer housing and nut
• Toolless Installation: Standard tools can be used as assembly aid
• Integrated wire termination and wire cut off
• Rugged die casted housing for optimal protection and shielding
• Small form factor reduces PCB area and equipment height
• 2 unique keying styles (Type 1 / Type 2) to prevent mismating

Applications

• DIN rail equipment: I/O, PLC
• Motor drives
• Robotics
• Other Ethernet application in shock and vibration prone environments (e.g. field devices with Ethernet connectivity) or in the need of space saving (compared to RJ45)

Benefits

• Field installable technology enable easy, quick and error free installation
• With its innovative IDC termination, it decreases the time usually needed to terminate the wires by soldering
• With only 25% of the size of a conventional RJ45, TE’s Industrial Mini I/O solution allows you to save on valuable boards space
• EMI and Signal Integrity are optimized by the signal path design and the 360 degrees shielding brings in next generations to Cat6A performance
• High retention of the board connectors, combined with a compact metal latching mechanism prevents accidental pull or unmating, reducing potential system down time
• Allows latch activation in high density applications

Specifications

Materials

• Die Cast Housing
• Contact: Copper alloy

Mechanical

• Robust Die Cast Housing
• Operating Temperature: -55°C up to +105°C
• _750 Cycles
• Cable retention force: 100N

Electrical

• Cat5e transmission
• 60 VDC rated
• Current rating: <=1 A

Standards

• IEC61076-3-122
• UL 1863
• 108-94740-1
• 114-94602
