Product Variant Information section
Product Specification Section
Pricing Section

Stock: 0

On Order: 0
Factory Stock:Factory Stock: 0
Factory Lead Time: N/A
Minimum Order: 100
Multiple Of: 100
Quantity Web Price
1 $11.11
5 $10.49
15 $10.09
30 $9.84
50+ $9.66
Total:

$966.00

USD
Attributes
Attributes Table
Contact Current-Max 6A
Switch Operation On-On
Circuitry SPDT

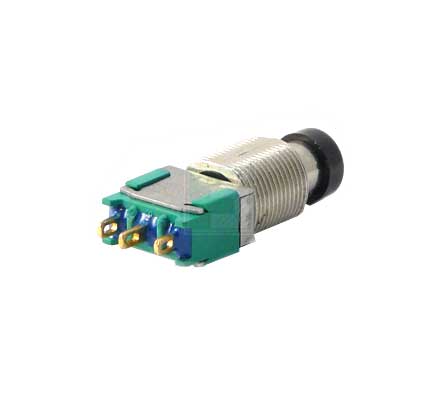

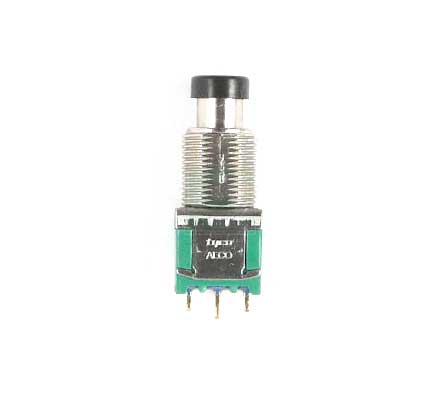

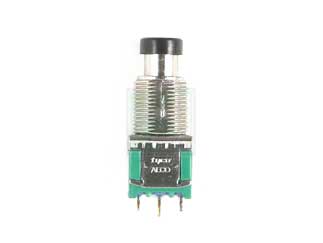

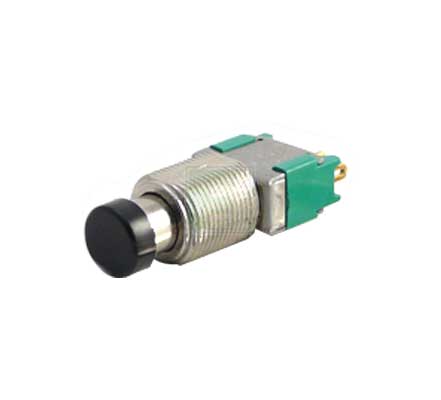

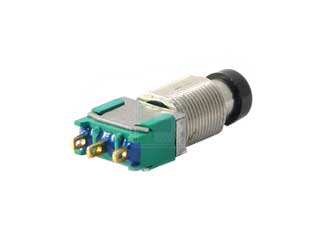

Actuator Style Round Button
Termination Style Solder Lug
Features and Applications

A switch is a device for making or breaking an electric circuit, or for selecting between multiple circuits. In the simplest case, a switch has two pieces of metal called contacts that touch to make a circuit, and separate to break the circuit. The contact material is chosen for its resistance to corrosion, because most metals form insulating oxides that would prevent the switch from working.

Its a SPDT(Single Pole Double Throw)  switch, consist of a coil , 1 common terminal , 1 normally closed terminal , and one normally open terminal.

Material Specifications :

  • Contacts:  Silver clad copper with gold flash
  • Case Material:  Thermoset
  • Actuator Material:  Nickel plated copper alloy
  • Terminals:  Copper with gold flash
  • Terminal Seal:  Molded in

Environmental Specifications :

  • Operating Temperature:  -20°C to +80°C (-4°F to +176°F)
  • Storage Temperature:  -40°C to +80°C (-40°F to +176°F)

Typical Performance Characteristics :

  • Contact Rating:  6A @ 125 VAC, 3A @ 250 VAC
  • Initial Contact Resistance:  10 milliohms max.
  • Contact Timing:  Break-before-make
  • Insulation Resistance:  1000 megohms min.
  • Dielectric Strength:  1500 Volts RMS @ sea level
  • Actuation Force:  1.3 to 2.7 lbs.
  • Actuator Travel:  3.56mm [.140 in.]
  • Life Expectancy:  Up to 50,000 actuations
