Manufacturer Part #

GB15AH-XA

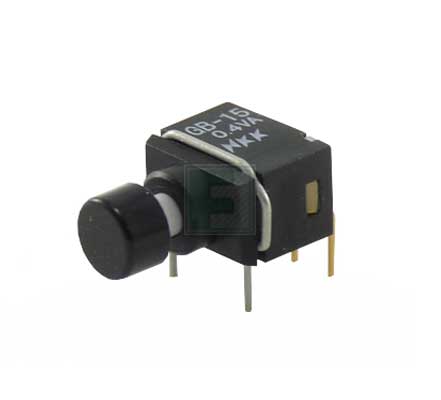

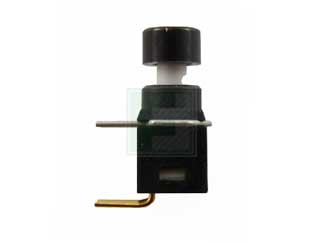

GB Series Mini SPDT On-Momentary Right Angle Through Hole Pushbutton Switch

GB15AH-XA Datasheet GB15AH-XA Documentation 3D Drawings
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Bulk BulkSelected Variant Qty: 1+ / Unit Price: $6.10 / Stock: 0 Qty: 1+$6.10 Stock: 0 Package Qty: 1 per Bulk Mounting Method: Through Hole
Date Code:

NKK Switches GB15AH-XA - Technical Attributes

Switch Operation:	On-Mom
Circuitry:	SPDT
Illumination Color:	No
Actuator Style:	Round Button
Termination Style:	Right Angle
Mounting Method:	Through Hole

Features & Applications

The GB15AH-XA-RO is a GB Series Mini SPDT On-Momentary Right Angle Through Hole Push Button Switch.

These switches are Ultra-miniature size allows high density mounting, and extremely light weight of 0.25 gram makes these switches ideal for handheld equipment. Totally sealed body construction prevents contact contamination and allows time- and money-saving automated soldering and cleaning.

Features:

These switches are designed for use in a low-voltage, low-current, logic-level circuit
When used as intended in a logic-level circuit, the results do not produce hazardous energy
Logic Level: 0.4 VA maximum @ 28 V AC/DC maximum
Operating Temp Range: –30°C through +85°C (–22°F through +185°F)
