Manufacturer Part #
1825965-1

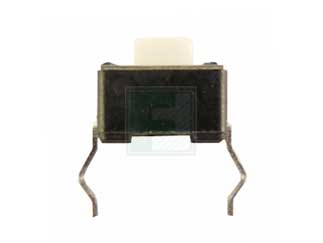

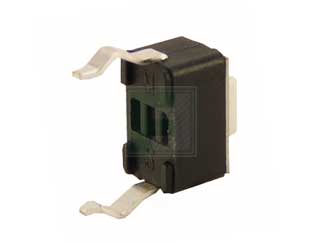

SPST Rectangular Actuator 130 Gram Force 3.5 X 6.0 X 5.0 Tactile Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2216 | ||||||||||
Product Specification Section
TE Connectivity 1825965-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825965-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--tactile/1825965-1-te-connectivity-3967171
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825965-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--tactile/1825965-1-te-connectivity-3967171
TE Connectivity 1825965-1 - Technical Attributes
Attributes Table
| Actuation Force: | 1.3N |
| Contact Material: | Silver |
| Actuator Style: | Rectangular |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Features & Applications
The 1825965-1 is a 50 mA SPST Rectangular Actuator 130 Gram Force 3.5 X 6.0 X 5.0 Tactile Switch.
It has an Operating temperature ranges b/w -40 °C to 85 °C and available in Tape and Reel package.
Product Features:
- Product Type = Switch
- Tactile = Yes
- Configuration (Pole-Throw) = Single Pole - Single Throw
- Series = FSMH
- Mount Angle = Vertical
- Termination Type = Printed Circuit
- Actuator Style = Rectangular
- Leg Style = Kinked
- Contact Rating = 50 mA
- Mount Style = Throgh-Hole
- Actuator Length (mm) = 1.52
- Actuator Profile = Extended
- Actuator Color = Natural
- Case Material = Nylon
- Actuator Material = PBT
- Contact Plating = Silver
- Process Sealed = No
- Contact Base Material = Copper Alloy
- Operating Function = Off [On]
- Ganged = No
- ESD Grounding Terminal = Without
- Actuator Force (g) = 130.00
- Number of Actuators = Single
- Dust Proof = No
Applications:
- White goods
- Building automation
- Office equipment
- Communications
- Test & measurement
- Remote control devices
- Heating and air-conditioning systems
Pricing Section
Global Stock:
275
USA:
275
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1
$0.111
250
$0.109
500
$0.107
1,500
$0.105
3,000+
$0.101
Product Variant Information section
Available Packaging
Package Qty:
1000 per Box
Mounting Method:
Through Hole
