Manufacturer Part #

TL1105F160Q

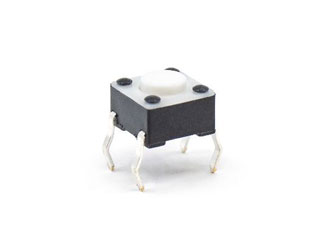

TL1105 Series SPST 1.6 N Round Button PC Through Hole Tactile Switch

TL1105F160Q Datasheet TL1105F160Q Documentation Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	E-Switch
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 750 per Bulk Mounting Method: Through Hole
Date Code:	2421

E-Switch TL1105F160Q - Technical Attributes

Switch Operation:	Off-Mom
Circuitry:	SPST N.O.
Voltage Rating:	12V
Current Rating:	50mA
Insulation Resistance:	100MΩ
Actuation Force:	1.6N
Contact Material:	Silver
Operating Force:	160gf
Contact Plating:	Silver
Actuator Style:	Round Button
Termination Style:	PCB
Dielectric Withstanding Voltage:	250V
Operating Temperature:	-20°C to +70°C
Dimension:	L 6mm x W 6mm
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

E-Switch has been manufacturing switches since 1979 and can attribute its success to Little Details, Big Quality. With a continuously expanding product offering, E-Switch has built a reputation for total customer satisfaction. E-Switch emphasizes quality through efficiency, in both the design and manufacturing process, allowing for exceptional quality product at competitive prices.

The TL1105 Series of 6mm x 6mm tactile switches are a perfect example of these efficiencies. This low cost single pole single throw (SPST) through hole tactile is available with multiple actuator options. Terminals are silver plated brass with the option of gold or silver contacts. Typical travel is 0.25mm (+/- 0.1mm) with 3 standard actuation forces available (1N, 1.6N, 2.5N).

The versatile TL1105 is used in the following applications/markets:

Telecommunications
Consumer Electronics
Audio Visual
Medical
Testing/Instrumentation
Computer/Server/Peripherals

The TL1105F160Q is a single pole single throw (SPST) right angle through hole tactile switch. It comes with a 4.33 mm actuator that operates with 160 grams (1.6N) of force. Terminals are silver plated brass with silver contacts.
