Manufacturer Part #
103638-1

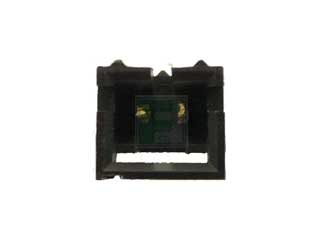

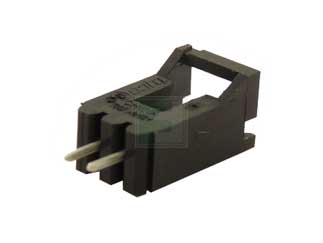

AMPMODU Single Row 2 Position 2.54mm Pitch Straight Through-Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:72 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: To provide flexibility to our manufacturing processes, we are allowing the manufacturing plants, when possible, to utilize regrind resin, up to the allowable limit specified on the UL Yellow Card, in the molding process. Adding feature at latch to increase mold efficiency.Reason: Product Improvement. Making a more robust tool to prevent mold down time and increase mold efficiency. Second item is to provide an option of when adequate regrind is generated, Manufacturing can add it to the production.The material is the same formulation as currently used.
Description of Changes:To provide flexibility to our manufacturing processes, we are allowing the manufacturing plants, when possible, to utilize regrind resin, up to the allowable limit specified on the UL Yellow Card, in the molding process. Adding feature at latch to increase mold efficiency. Reason for Changes: Product Improvement. Making a more robust tool to prevent mold down time and increase mold efficiency. Second item is to provide an option of when adequate regrind is generated, Manufacturing can add it to the production. The material is the same formulation as currently used.
AMPMODU MTE HEADER ASSEMBLIES - CORRECTION TO PCN P-19-016981-LOCATION CHANGE FROM CHINA OUTSIDE VENDOR, NOT TE SUZHOU Description of Changes Manufacturing location changeFor any orders for an end customer location that is in the Americas, for the part numbers, the manufacturing location will change from our outside vendor in China to our TE plant in Hermosillo, Mexico.
Part Status:
Technical Attributes
| No of Positions: | 2 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -65°C to +105°C |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Thermoplastic |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Mating Type: | Polarization |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The 103414-4 is a part of MTE Series AMPMODU 2 Position .100 Inch Through-Hole Single Row Straight Header. Its Operating Temperature ranges from -65°C – +105°C.
Product Specifications:
- Product Type = Connector
- Connector Type = Header
- Post Size (mm [in]) = 0.64 [.025]
- PCB Mounting Orientation = Vertical
- Termination Method to Wire/Cable = Crimp, Insulation Displacement Crimp (IDC)
- PCB Mount Style = Through Hole
- PCB Mount Retention = Without
- Connector Series = MTE
- Contact - Rated Current (A) = 3
- Termination Resistance (mΩ) = 15
- Insulation Resistance (MΩ) = 5,000
- Dielectric Withstanding Voltage (V) = 600
- Solder Tail Contact Plating = Tin-Lead
- Centerline (mm [in]) = 2.54 [0.100]
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Number of Positions = 2
- Number of Rows = 1
- Contact Type = Pin
- Contact Plating, Mating Area, Material = Gold (15)
- Contact Base Material = Brass
- Contact Shape = Square
View the Available 103414 Series of Headers
Available Packaging
Package Qty:
72 per Tube
Mounting Method:
Through Hole
