Manufacturer Part #
1-480318-0

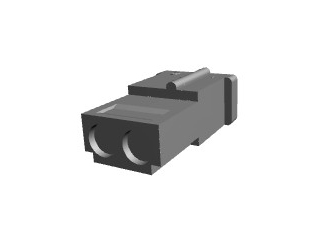

Commercial MATE-N-LOK 2 Position Detent Lock Male Free Hanging Plug Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Bag | ||||||||||
| Date Code: | 2025 | ||||||||||
Product Specification Section
TE Connectivity 1-480318-0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-480318-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-480318-0-te-connectivity-4765350
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-480318-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-480318-0-te-connectivity-4765350
TE Connectivity 1-480318-0 - Technical Attributes
Attributes Table
| No of Positions: | 2 |
| No of Rows: | 1 |
| Contact Termination: | Male/Pin Crimp |
| Pitch: | 5.08 mm |
| Style/Orientation: | Free Hanging Plug |
| Termination: | Crimp |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Pre-Tin |
| Material: | Nylon |
| Gender: | Female |
| Type: | Plug |
| Mating Type: | Detent Lock |
| Color: | Natural |
Features & Applications
The 1-480318-0 is a Commercial MATE-N-LOK 2 Position Detent Lock Male Free Hanging Plug Housing Connector.
Features:
- Product Line = Commercial MATE-N-LOK
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Type = Discrete Wire
- Mating Retention Type = Detent Lock
- Contact Diameter (mm [in]) = 2.13 [0.084]
- Number of Positions = 2
- Number of Rows = 1
- Contact Type = Socket
- Connector Style = Plug
- Housing Material = Nylon
- Housing Color = Natural
- UL Flammability Rating = UL 94V-2
- Packaging Method = Box
- RoHS/ELV Compliance = ELV compliant
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
1
$0.142
200
$0.139
750
$0.136
2,000
$0.134
7,500+
$0.128
Product Variant Information section
Available Packaging
Package Qty:
10000 per Bag
