Manufacturer Part #
5-1761185-3

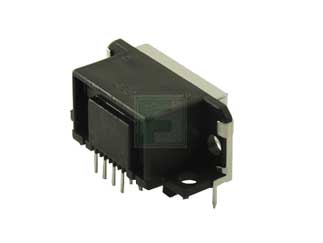

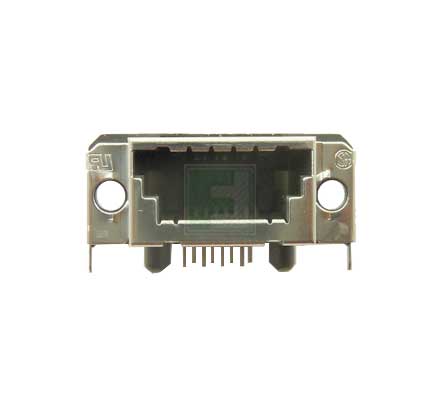

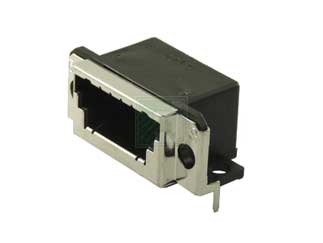

SDL 8 Position Side Entry PCB Mounting Holes Socket Modular Jack
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1080 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 5-1761185-3 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-1761185-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5-1761185-3-te-connectivity-3228665
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-1761185-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5-1761185-3-te-connectivity-3228665
TE Connectivity 5-1761185-3 - Technical Attributes
Attributes Table
| Style: | Standard Jack |
| No of Positions: | 8 |
Features & Applications
The 5-1761185-3 is a Shielded Data Link connector that provides EMI/RFI protection for a wide range of applications and also the connector mates smoothly and effortlessly because of its low force contact design. It has an Operating Temperature of -20° C to +80° C.
Product Features:
- Product Type = Connector
- Gender = Receptacle
- Receptacle Configuration = Standard
- Number of Conductors = 8
- Grounding Options = PCB and Panel Ground
- PCB Mount Retention = With
- Shield Material = Brass
- PCB Mount Retention Type = Mounting Holes
- Shield Plating = Tin over Copper
- Contact Base Material = Phosphor Bronze
- Contact Plating, Mating Area, Material = Gold (50)
- Keying = E
- Housing Entry Style = Side
- Housing Material = Polyester
- Housing Color = Black
- UL Flammability Rating = UL 94V-0
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
1
$4.34
15
$4.24
40
$4.18
100
$4.12
250+
$4.00
Product Variant Information section
Available Packaging
Package Qty:
1080 per Tray
