Manufacturer Part #
R6002END3TL1

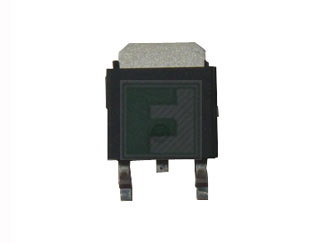

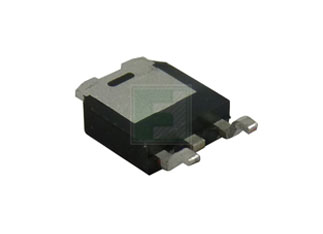

N-Channel 600 V 1.7 A 3.4 Ohm 26 W Surface Mount Power MOSFET - TO-252
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:TO-252-3 (DPAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
ROHM R6002END3TL1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
PowerTransistor_Material change(organic film) and Addition of Shiga Factory for High Voltage MOSFET.Chamge Details: Before:Factory:RohmApollo ChikugoOrganic Film:Polyimide After:Factory:RohmApollo Chikugo and Rohm Shiga FactoryOrganic Film:Polyimide Reason:This transfer will increase production capacity and stabilize production which contribute to BCP, and the organic thin film materials contain an environmental regulation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=R6002END3TL1&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/r6002end3tl1-rohm-5117159
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=R6002END3TL1&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/r6002end3tl1-rohm-5117159
ROHM R6002END3TL1 - Technical Attributes
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 600V |
| Drain-Source On Resistance-Max: | 3.4Ω |
| Rated Power Dissipation: | 26W |
| Qg Gate Charge: | 6.5nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 1.7A |
| Turn-on Delay Time: | 12ns |
| Turn-off Delay Time: | 25ns |
| Rise Time: | 16ns |
| Fall Time: | 60ns |
| Gate Source Threshold: | 4V |
| Input Capacitance: | 65pF |
| Package Style: | TO-252-3 (DPAK) |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
2500 per Reel
Package Style:
TO-252-3 (DPAK)
Mounting Method:
Surface Mount
