Murata Type 2FR Wi-Fi^® + Bluetooth^® Module

High Performance Capabilities for Various IoT Applications

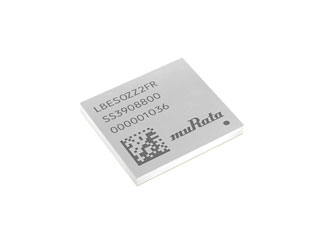

Type 2FR by Murata is a highly integrated wireless module based on NXP RW612 Wireless MCU. It measures just 12mm x 11mm and delivers class-leading integration, efficiency, and multiple radio capabilities. Type 2FR supports dual-band Wi-Fi 6, Bluetooth® Low Energy (LE) 5.4, IEEE 802.15.4, and ethernet. This versatility ensures seamless connectivity and operational efficiency.

Further, it supports Matter Network over Wi-Fi, Thread, and ethernet. This simplifies device interoperability and management.

Chipset: NXP RW612 Wireless SoC

The NXP RW612 wireless SoC integrates an Arm Cortex-M33 MCU for user applications.

• 260 MHz Arm Cortex-M33 with TrustZone-M
• CoreMark® score: 1,033; 3.97 CoreMark/MHz
• 1.2 MB integrated SRAM

Memory and Flash

Type 2FR module integrates 16MB flash memory through FlexSPI interface to RW612. The module supports external flash or external memory through FlexSPI interface.

Peripheral Interfaces

Type 2FR supports total 64 GPIOs and rich peripheral interfaces for user application.

• Up to five configurable universal serial interface modules (FlexComm interfaces). Configurable as SPI/I2C/I2S/UART
• SDIO 3.0
• High Speed USB 2.0 On-The-Go (OTG) with integrated PHY
• IEEE 1588 RMII/Fast Ethernet interface
• QVGA (320 x 240) LCD interface supporting SPI and 8080 interfaces
• 16-bit ADC and 10-bit DAC
• 32-bit general purpose timers/PWM
• 4 x digital microphone support

Security Features

• NXP EdgeLock™ Assurance
• NXP EdgeLock 2GO Trust Provisioning
• Trusted execution environment (TEE) based on Arm TrustZone-M
• Hardware root of trust
• Hardware cryptography accelerators (symmetric, asymmetric, secure hash, KDF, etc.)
• True Random Number Generator (TRNG)
• Physically Unclonable Function (PUF)
• OTP-based device configuration and life cycle management
• Secure boot, software update and debug
• On-chip tamper detection for voltage level and glitch, temperature and reset

Type 2FR Block Diagram

Applications

Software

• NXP Github: MCUXpresso; RW61x SDK software; Matter software
• Murata's Community Forum

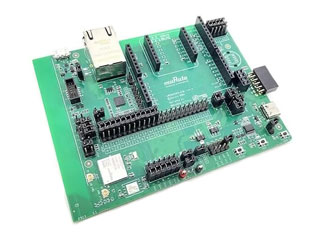

Type 2FR Evaluation Kit

LBES0ZZ2FR-EVK
