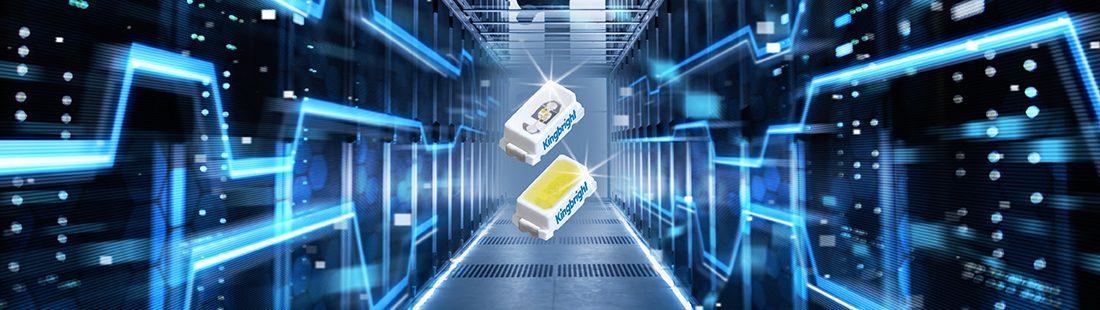

Kingbright has introduced a very low-profile, mini PLCC-2 series of surface-mount color LEDs in an industry-standard 0603, 1.6 mm x 0.8 mm footprint. The PLCC-2 package is just 0.55 high.
The new Kingbright AA1608 series of reliable LEDs produces a high-intensity output: it is up to twice as intense as that of standard 0603 chip-type LEDs. The LEDs have a wide viewing angle of 120°.
Low power consumption and support for automated assembly make the AA1608 LEDs ideal for use in backlight and indicator applications.
Part Number | Color | Peak Wavelength | Typical Luminous Intensity |
AA1608CGSK | Green | 570 nm | 75 mcd at 20 mA |
AA1608QBS/D-10MAV | Blue | 465 nm | 80 mcd at 10 mA |
AA1608QWS/D-10MAV | Cool white (x = 0.31, y = 0.31) | n/a | 490 mcd at 10 mA |
AA1608SESK | Orange | 605 nm | 240 mcd at 20 mA |
AA1608SURSK | Red | 630 nm | 160 mcd at 20 mA |
