RECOM has expanded its cost-effective RACM30-K series of 30 W ac-dc converter modules to include options for 36 V, 48 V, or 54 V dc outputs, making them suitable for a wider variety of applications. The series already included parts offering 5 V, 12 V, 15 V, 24 V, ±12 V and ±15 V outputs.
The new converters are certified according to the UL 60601-1 BF medical standard for outputs higher than 24 V dc, making them suitable for home healthcare use. The RACM30-K converters now also support power-over-Ethernet (PoE+) applications. The 54 V output converter is suitable for power injection with high isolation to ground.
The RACM30-K series operates from a universal mains input-voltage range of 88 V to 305 V ac. It is supplied in wired, open-frame or encapsulated PCB options, and in a chassis-mount format with industry-standard pin-outs. A DIN rail fixing option is also available with push-in wire terminations.

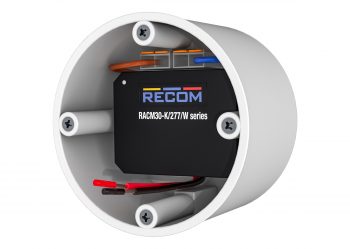

Additionally, a fully encapsulated version in an IP65-rated housing and with a diameter of just 59 mm is supplied with flying wires for incorporation into flush-mount wall boxes.
The footprint of the converters supplied in an enclosure is just 1.5” x 2”: they are rated for the full 30 W power output at ambient temperatures of between -40°C and 60°C, and up to 90°C with derating.
