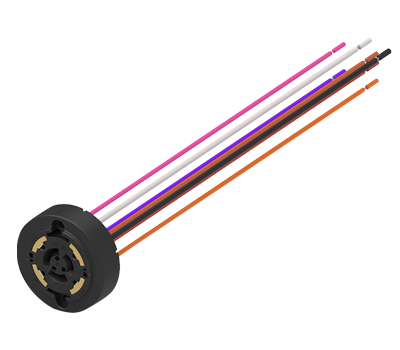

TE Connectivity (TE) supplies the LUMAWISE Endurance N dimming receptacle, an ANSI C136.41-compliant unit, to provide an electrical and mechanical interconnection between an ANSI C136.41-2013-compliant control and a luminaire.
Suitable for outdoor commercial and utility lighting, the Endurance N dimming receptacle is available with two or four dimming contacts to support either 0 to 10 V dimming or a DALI control interface. At the same time, the receptacle provides a reliable power connection with three robust twist-lock contacts.
TE offers the Endurance N receptacle in five- and seven-position versions:
Power contacts are terminated to 14 AWG stranded wire, and signal contacts are terminated to 18 AWG stranded wire, in accordance with UL1015 or UL3321.
LUMAWISE, TE Connectivity, TE and TE connectivity (logo) are trademarks.
