Manufacturer Part #

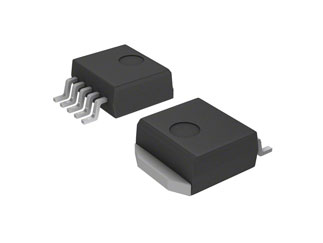

LM2576D2TR4-5G
LM2576 Series 40 V 52 kHz Surface Mount Step−Down Switching Regulator - D2PAK-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:800 per Reel Package Style:TO-263-3 (D2PAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2514 | ||||||||||
Product Specification Section
onsemi LM2576D2TR4-5G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LM2576D2TR4-5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/8129900
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LM2576D2TR4-5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/8129900
onsemi LM2576D2TR4-5G - Technical Attributes
Attributes Table
| Topology: | Buck |
| Input Voltage: | 7V to 40V |
| Output Current-Max: | 3A |
| Output Type: | Fixed |
| Switching Frequency-Max: | 52kHz |
| Operating Temp Range: | -40°C to +125°C |
| Duty Cycle-Max: | 98% |
| Efficiency: | 77% |
| No. of Outputs: | 1 |
| Quiescent Current: | 9mA |
| Storage Temperature Range: | -65°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TO-263-3 (D2PAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
800
$1.10
1,600
$1.09
2,400
$1.08
4,000+
$1.07
Product Variant Information section
Available Packaging
Package Qty:
800 per Reel
Package Style:
TO-263-3 (D2PAK)
Mounting Method:
Surface Mount
