Manufacturer Part #
72R020XPR

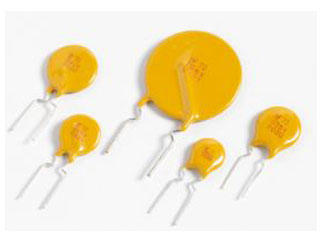

PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 72VDC 40A 0.41W 2.2s 1.83Ohm Radial 7.
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Ammo Pack Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Littelfuse 72R020XPR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Change Notification for Littelfuse (Coating Material Change for Radial Lead PPTC)Littelfuse would like to notify you of a change related to the epoxy coating of the Radial Leaded PPTC products. Due to obsolescence of the current epoxy coating by our supplier, Littelfuse has qualified alternative epoxy coating sources. The change to the coating will impact all products in the PPTC Radial Leaded range.TimeframeThis change will be made starting Jan 1, 2024.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=72R020XPR&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/72r020xpr-littelfuse-2067283
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=72R020XPR&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/72r020xpr-littelfuse-2067283
Littelfuse 72R020XPR - Technical Attributes
| Voltage Rating: | 72V |
| Hold Current [Ih]: | 200mA |
| Trip Current: | 400mA |
| Resistance: | 4.4Ω |
| Current Rating: | 40A |
| Time to Trip: | 2.2s |
| Operating Temp Range: | -40°C to +85°C |
| Terminal Pitch: | 5.1mm |
| No of Terminals: | 2 |
| Dimension: | T 3.1mm x L 11.7mm x D 7.4mm |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
2000 per Ammo Pack
Mounting Method:
Through Hole
