Manufacturer Part #
LAA110P

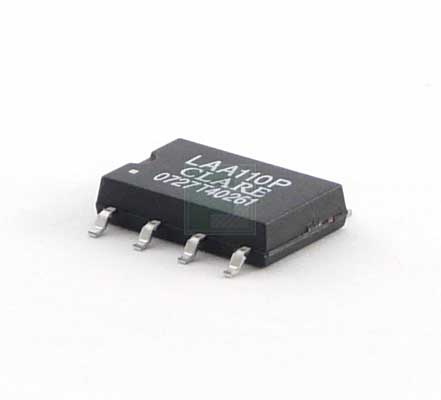

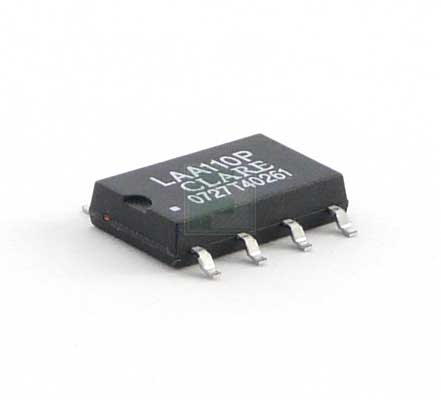

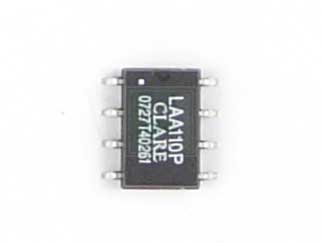

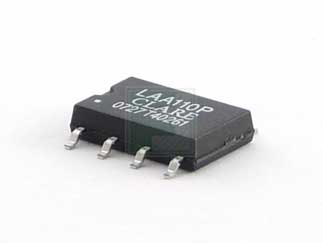

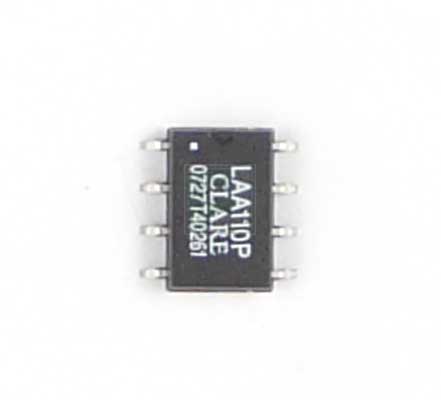

LAA110 Series DPST 120 mA 350 V Dual Channel Solid State Relay SMT - FLATPACK-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:FLATPACK 8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2504 | ||||||||||
Littelfuse LAA110P - Product Specification
Shipping Information:
ECCN:
PCN Information:
Detailed Description of Change:Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about the qualification of an additional EMC (Epoxy Mold Compound) to ensure security of supply for the part numbers summarized in the table attached. The affected part numbers listed are fully qualified in accordance with established performance and reliability criteria. Samples will be provided upon request depending on availability.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LAA110P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/laa110p-littelfuse-6027163
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LAA110P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/laa110p-littelfuse-6027163
Littelfuse LAA110P - Technical Attributes
| Contact Form: | SPST (1 Form A) |
| No of Channels: | 2 |
| Output Voltage: | 350V |
| On-state Resistance-Max: | 35Ω |
| Input Voltage: | 0.9V to 1.5V |
| Input Current: | 50mA |
| Contact Current-Max: | 0.12A |
| Isolation Voltage-RMS: | 3750V |
| Capacitance: | 3pF |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | FLATPACK 8 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
50 per Tube
Package Style:
FLATPACK 8
Mounting Method:
Surface Mount
