Manufacturer Part #
7V-26.000MAAE-T

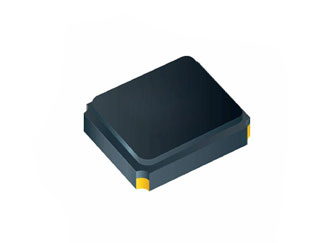

26 MHz ±30ppm 12pF 60 Ohms Surface Mount No Lead Crystal - SMD-4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TXC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SMD-4 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TXC 7V-26.000MAAE-T - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=7V-26.000MAAE-T&field4=TXC&field18=https://p1apac.futureelectronics.com/p/electromechanical--timing-devices--crystals/7v-26-000maae-t-txc-4163567
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=7V-26.000MAAE-T&field4=TXC&field18=https://p1apac.futureelectronics.com/p/electromechanical--timing-devices--crystals/7v-26-000maae-t-txc-4163567
TXC 7V-26.000MAAE-T - Technical Attributes
Attributes Table
| Load Capacitance: | 12pF |
| Operating Frequency: | 26MHz |
| Frequency Tolerance: | ±30ppm |
| Operating Temp Range: | -20°C to +70°C |
| ESR (Equivalent Series Resistance): | 60Ω |
| Aging (First Year): | ±3ppm |
| Storage Temperature Range: | -55°C to +125°C |
| Moisture Sensitivity Level: | 1 |
| Dimension: | L 3.2mm x W 2.5mm x D 0.9mm |
| No of Pins: | 4 |
| Package Style: | SMD-4 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
3,000
$0.225
6,000+
$0.22
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SMD-4
Mounting Method:
Surface Mount
