Manufacturer Part #
MP040

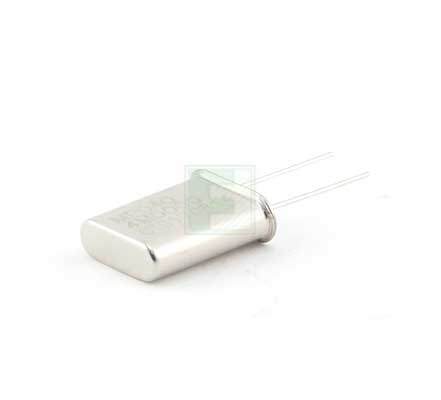

MP Series 4 MHz ±30 ppm 20 pF -20 to +70 °C Through Hole Quartz Crystal
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | CTS | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:100 per Bag Mounting Method:Through Hole |
||||||||||
| Date Code: | 2527 | ||||||||||
Product Specification Section
CTS MP040 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8541.60.00.30
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MP040&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--timing-devices--crystals/mp040-cts-1196187
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MP040&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--timing-devices--crystals/mp040-cts-1196187
CTS MP040 - Technical Attributes
Attributes Table
| Load Capacitance: | 20pF |
| Operating Frequency: | 4MHz |
| Frequency Tolerance: | ±30ppm |
| Operating Temp Range: | -20°C to +70°C |
| ESR (Equivalent Series Resistance): | 100Ω |
| Insulation Resistance: | 500MΩ |
| Drive Level: | 1000µW |
| Aging (First Year): | ±5ppm |
| Storage Temperature Range: | -40°C to +85°C |
| Moisture Sensitivity Level: | 1 |
| Dimension: | L 10.85mm x W 3.8mm |
| No of Pins: | 2 |
| Mounting Method: | Through Hole |
Features & Applications
The MP040 series of Quartz Crystal. It offers excellent long-term stability and reliability in a proven resistance-weld metal package. It's operating frequency is 4 MHz and operating temperature is -20 to +70°C.
Features:
- Standard HC-49/U Package, HC-49/U SM Package Option Available
- Stable Frequency Over Temperature and Drive Level
- Fundamental and 3rd Overtone Crystals
- Frequency Range 1.8432 – 64 MHz
- Frequency Tolerance, ±30 ppm Standard
- Frequency Stability, ±50 ppm Standard
- Operating Temperature, –20°C to +70°C Standard, -40°C to +85°C Available
- Tape & Reel Packaging Available
- RoHS/Green Compliant (6/6)
Applications:
- Microprocessor
- Telecommunication
- Industrial
- Consumer electronics
- Networking applications?
Pricing Section
Global Stock:
1,000
USA:
1,000
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
40
$0.515
100
$0.505
200
$0.495
400
$0.49
1,000+
$0.47
