TE Connectivity | 5747462-2

Manufacturer Part #

5747462-2

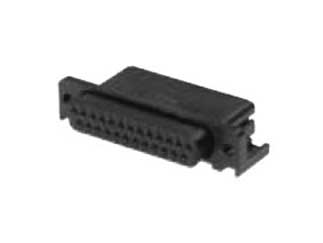

HD20 Series 37 Position Right Angle Receptacle Plastic Shell Board Mount D-Sub

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5747462-2 - Technical Attributes
Attributes Table
Style/Orientation: Standard Free Hanging Receptacle
No of Positions: 37
Termination: PCB
Material: Plastic
Features & Applications

The 5747462-2 is a 37 Position Right Angle Receptacle Plastic Shell Board Mount D-Sub connector.

Product Highlights:

  • 37 Positions
  • Connector Style = Receptacle
  • PCB Mounting Orientation = Right angle
  • Product Series = HD 20
  • With Mating Connector Lock
  • Sealed = No
  • Profile = Standard
  • Post Size (mm [in]) = 0.66 [.026]
  • Mounting Hole Diameter (mm [in]) = 3.18 [.125]
  • Shell Material = Plastic
  • UL Flammability Rating = UL 94V-0
  • Housing Material = Thermoplastic - GF

Applications:

  • Industrial
  • Automotive





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
18 Weeks
Minimum Order:
224
Multiple Of:
224
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2,246.72
USD
Quantity
Unit Price
224+
$10.03
