Manufacturer Part #
5103308-2

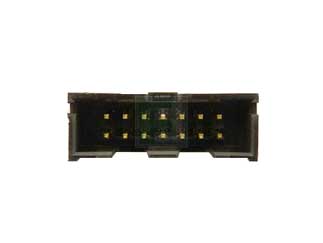

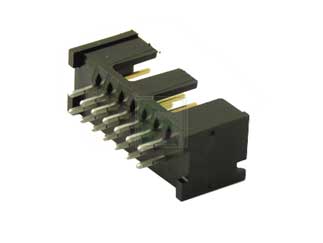

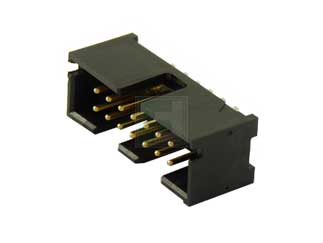

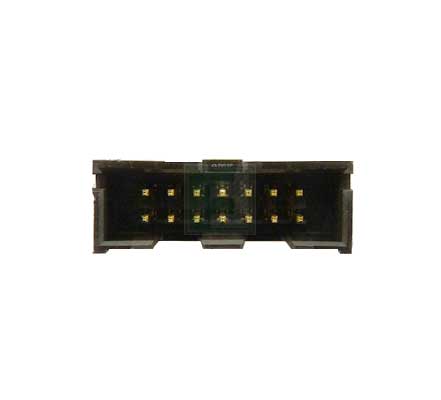

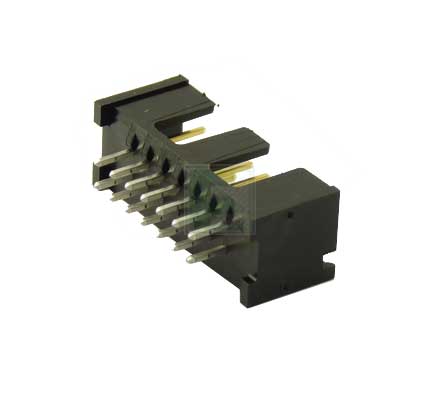

AMP-LATCH 14 Position Through-Hole Dual Row Straight 2.54 mm Pin Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2450 | ||||||||||
Product Specification Section
TE Connectivity 5103308-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=5103308-2&field4=TE Connectivity&field18=https://p1apac.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/5103308-2-te-connectivity-8967838
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=5103308-2&field4=TE Connectivity&field18=https://p1apac.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/5103308-2-te-connectivity-8967838
TE Connectivity 5103308-2 - Technical Attributes
Attributes Table
| No of Positions: | 14 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -65°C to +105°C |
| Voltage Rating: | 250V |
| Current Rating: | 1A |
| Contact Plating: | Gold |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Pin Headers |
| Mating Type: | Push - Pull |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The 5103308-2 is a AMP-LATCH 14 Position Through-Hole Dual Row Straight Pin Header .
Product Specification:
- Connector
- Preloaded
- Header
- Plug Style
- AMPMODU Product Line
- Pin Contact type
- Centreline is 2.54 mm [0.100 in]
- Number of Positions are 14
- Number of Rows are 2
- Thermoplastic - GF Housing Material
View the 5103308 series of Header
Pricing Section
Global Stock:
5,300
Singapore:
5,300
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
100
$0.905
300
$0.885
500
$0.875
1,000
$0.86
2,000+
$0.84
Product Variant Information section
Available Packaging
Package Qty:
100 per Tube
Mounting Method:
Through Hole
