Manufacturer Part #

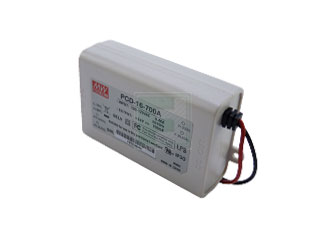

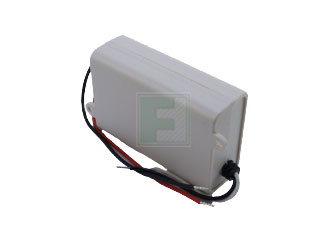

PCD-16-700A
100 - 120Vac, 16.8W, 700mA, 16-24V, [TRIAC, Tra...], IP30 LED Driver
| | |||||||||||
| | |||||||||||
| Mfr. Name: | MEAN WELL | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
MEAN WELL PCD-16-700A - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PCD-16-700A&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/semiconductors--Led-lighting-components--led-driver-modules-rev--constant-current-acdc-led-drivers/pcd-16-700a-mean-well-2016901
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PCD-16-700A&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/semiconductors--Led-lighting-components--led-driver-modules-rev--constant-current-acdc-led-drivers/pcd-16-700a-mean-well-2016901
-
MEAN WELL PCD-16-700A - Technical Attributes
Attributes Table
| Nominal Input Voltage: | 100VAC to 120VAC |
| Max Output Power: | 16.8W |
| Minimum Output Voltage: | 16V |
| Maximum Output Voltage: | 24V |
| Minimum Output Current: | 700mA |
| Maximum Output Current: | 700mA |
| Input Power Factor: | 0.9 |
| Efficiency: | 81% |
| Number of Output Channels: | 1 |
| Certifications: | cUL,UL |
| Driver Class: | Class 2,SELV |
| IP Rating: | IP30 - Indoor Lighting Only |
| Dimming Control: | Trailing Edge,TRIAC |
| Minimum Dimming Level: | 10% |
| Is Dim to Off: | False |
Features & Applications
The PCD-16-700A is a 16.8 W single output AC dimmable LED power supply with an output current of 0.7 A.
Features:
- AC phase-cut dimming
- Work with leading edge and trailing edge TRIAC dimmers
- 115 VAC or 230 VAC models available
- Built-in active PFC function
- Constant current design
- Protections: Short circuit / Over temperature
- Cooling by free air convection
- Fully isolated plastic case
- IP30 design
- Class 2 power unit, no FG
- Class 2 power unit
- Suitable for indoor LED lighting applications
- 100% full load burn-in test
- Low cost
- High reliability
- 3 years warranty
View the Available PCD-16 Series of LED Driver Modules
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1
$16.91
3
$16.70
10
$16.47
20
$16.34
40+
$16.10
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
