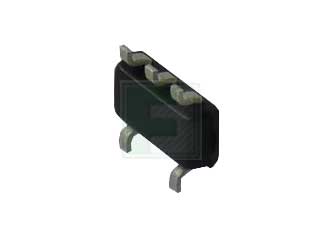

onsemi | LMV321SN3T1G

The LMV321SN3T1G is Single, Low Voltage, Rail-to-Rail Output Operational Amplifier.

The LMV321, LMV358, and LMV324 are single, dual, and quad low voltage operational amplifiers with rail-to-rail output swing. These amplifiers are a cost-effective solution for applications where low power consumption and space saving packages are critical. Specification tables are provided for operation from power supply voltages at 2.7 V and 5 V. Rail-to-Rail operation allows for optimal signal-to-noise applications. Ultra low quiescent current makes this series of amplifiers ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low-side current-shunt measurements. The ultra small packages allow for placement on the PCB in close proximity to the signal source thereby reducing noise pickup.

Key Features:

• Operation from 2.7 V to 5.0 V Single-Sided Power Supply.
• No Output Crossover Distortion.
• Industrial temperature Range: -40C to +85C.
• Rail-to-Rail Output.
• Low Quiescent Current.
• No Output Phase-Reversal from Overdriven Input.

Benefits:

• Compatible with the most common operating conditions.
• Guarantees signal integrity.
• Robust thermal performance.
• Reduces supply requirements.
• Improves battery life and power consumption.
• Predictable system behavior.

Applications:

• Voltage regulation.
• Sensor amplification or buffering.
• Notebook Computers and PDA’s.
• Portable Battery−Operated Instruments.
• Active Filters.
