Microchip | MCP1804T-C002I/MT

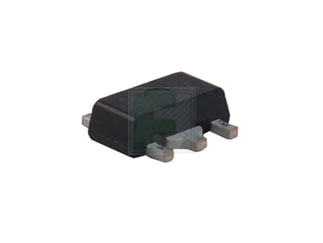

The MCP1804T-C002I/MT is a part of MCP1804 Series Linear Regulators. It is available in SOT-89-5 package.

The MCP1804 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 150 mA of current while consuming only 50 μA of quiescent current (typical, 1.8 V ≤ VOUT ≤ 5.0 V). The input operating range is specified from 2.0V to 28.0V. It is capable of delivering 100 mA with only 1300 mV (typical) of input to output voltage differential (VOUT = 3.3 V).

Features:

• 150 mA Output Current
• Low Drop Out Voltage, 260 mV typical @ 20 mA,VR = 3.3 V
• 50 μA Typical Quiescent Current
• 0.01 μA Typical Shutdown Current
• Input Operating Voltage Range: 2.0 V to 28.0 V
• Standard Output Voltage Options (1.8 V, 2.5 V, 3.0 V, 3.3 V, 5.0 V, 10.0 V, 12.0 V)
• Output Voltage Accuracy: ±2%
• Output voltages from 1.8 V to 18.0 V in 0.1 V increments are available upon request
• Stable with Ceramic output capacitors
• Current Limit Protection With Current Foldback
• Shutdown pin
• High PSRR: 50 dB typical @ 1 kHz

Applications:

• Cordless Phones, Wireless Communications
• PDAs, Notebook and Netbook Computers
• Digital Cameras
• Microcontroller Power
• Car Audio and Navigation Systems
• Home Appliances
