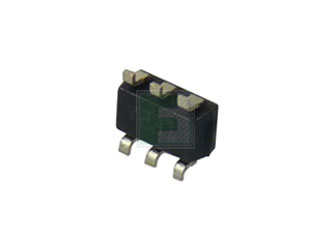

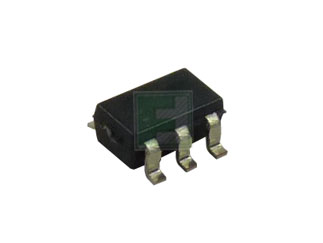

STMicroelectronics | STT818B

Manufacturer Part #

STT818B

STT818B Series PNP 30 V 3 A High Gain Low Voltage Power Transistor - SOT-23-6

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
STMicroelectronics STT818B - Technical Attributes
Attributes Table
Polarity: PNP
Type: Power Transistor
CE Voltage-Max: 30V
Collector Current Max: 3A
Power Dissipation-Tot: 1.2W
DC Current Gain-Min: 100
Package Style:  SOT-23-6 (SOT-26)
Mounting Method: Surface Mount
Features & Applications

The STT818B is a 1.2 W power high gain low voltage PNP power transistor, available in surface mount SOT-23-6L package.

Features:

  • Very low collector to emitter saturation voltage
  • DC current gain > 100 (hFE)
  • 3 A continuous collector current (IC)

Applications:

  • Power management in portable equipments
  • Switching regulator in battery charger applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
14 Weeks
Minimum Order:
6000
Multiple Of:
3000
Total
$1,200.00
USD
Quantity
Unit Price
3,000
$0.205
6,000
$0.20
12,000
$0.198
15,000
$0.197
45,000+
$0.192
