Manufacturer Part #
559-0102-007F

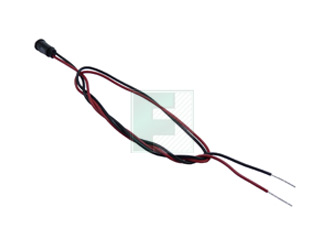

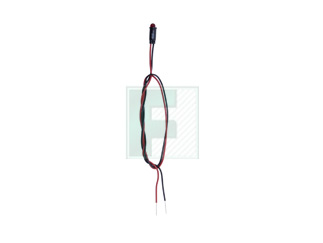

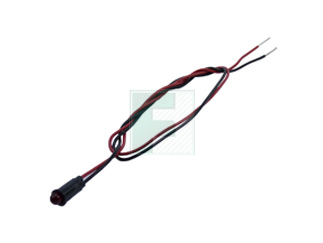

559 Series Red 60º 8 mcd Diffused Snap In LED Panel Mount Indicator
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Dialight | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bag Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Dialight 559-0102-007F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=559-0102-007F&field4=Dialight&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/559-0102-007f-dialight-9002121
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=559-0102-007F&field4=Dialight&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/559-0102-007f-dialight-9002121
Dialight 559-0102-007F - Technical Attributes
Attributes Table
| Color: | Red |
| Lens Type: | Diffused |
| Forward Voltage: | 5V |
| Forward (Drive) Current: | 10mA |
| Intensity: | 8mcd |
| Viewing Angle: | 60° |
| Mounting Method: | Panel Mount |
Features & Applications
The 559-0102-007F is a part of 559 Series Red Color 5 mm 60° of typical intensity 8 mcd 14 inch wire leads 5 V LED Indicator. It has an Operating Temperature ranging between -20 °C to +85 °C.
Product Features:
- Red Color
- 10 mA Current
- 635 nm Peak Wavelength
- Mounting hole size: 0.249 -0.252" (6.32 - 6.40 mm) Straight terminals for wire wrapping or either
- Panel thickness: 0.031-0.062" (.787 - 1.57 mm) 6 or 14 inch 24 AWG lead wire
- Housing: Black housing material
- Low power consumption - uses up to 90% less energy than an incandescent indicator
- Front panel snap-in mounting requires no additional hardware
- No heat generated
- Resistant to shock and vibration
- Termination - straight terminals for wire wrapping or lead wire for soldering or optional terminals
- Colors include - red, green, yellow
- Storage temperature: -55°C to +100°C
Applications:
- Main and remote power indication
- Maintenance and warning indication
- Status indication
- Instrumentation
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
26 Weeks
Quantity
Unit Price
100
$1.24
200
$1.22
400
$1.21
500+
$1.20
Product Variant Information section
Available Packaging
Package Qty:
100 per Bag
Mounting Method:
Panel Mount
