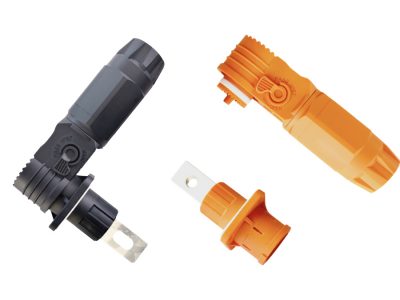

The ESF and ESM series energy storage connectors provide high-current and high-voltage links between battery modules in renewable energy and industrial power systems. The ESF series with a female terminal and the ESM series with a male terminal are available in three versions with current ratings up to 120A, 250A, or 350A.
Built for outdoor use, these Adam Tech IP67-rated connectors are waterproof when mated, and feature a rugged housing which resists heat, vibration and contamination. The rugged mechanical design supports a minimum of 500 mating cycles. The connectors maintain maximum contact resistance of just 5mΩ throughout the product’s service life.
Supporting wire sizes from 6 AWG to 4/0 AWG, the connectors are available with crimp, threaded hole, busbar (threaded or through hole) or screw post terminations, for easy integration into modular battery racks and power conversion units. Color-coded orange or black housings simplify polarity identification.
Series | Rated Current | Voltage Rating | Withstanding Voltage |
ESF/ESM-0/1 | 90A/120A | 1,000V dc | 3,800V dc |
ESF/ESM-2 | 200A/250A | 1,500V dc | 6,800V dc |
ESF/ESM-3 | 300A/350A | 1,500V dc | 6,800V dc |
