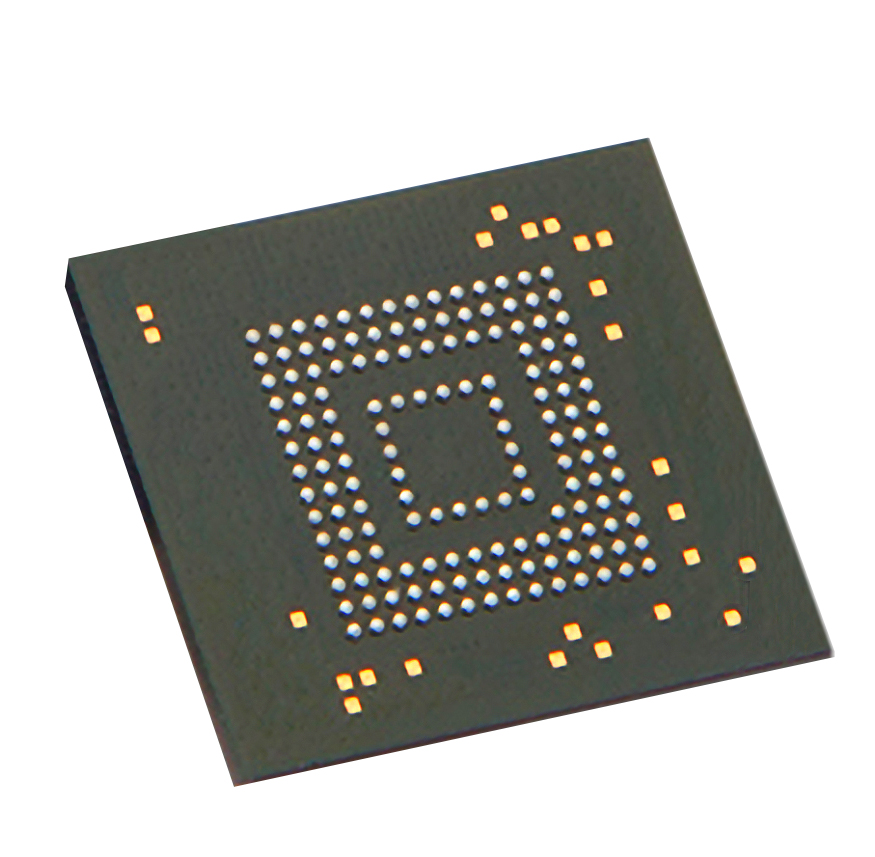

The Kingston® family of eMMC devices includes an I-Temp eMMC™ Flash memory range for industrial and other applications that require tolerance of operating temperatures from -40°C up to 85°C.
It is ideal for use in applications operating in harsh environments, including outdoor signage, surveillance equipment, factory automation, transportation, servers, and touchscreen kiosks.
The Kingston eMMC non-volatile memory products consist of NAND Flash memory and a Flash memory controller. The controller implements error correction, wear leveling, performance optimization and read sensing, freeing the host processor of the need to perform low-level Flash memory management.
Kingston also handles, invisibly, the migration from one generation of NAND Flash technology to another, so that device OEMs only have to implement the interface design and qualification process for any part number once. This results in a shorter time to market, and enables OEMs to benefit from the cost, capacity and performance improvements made by NAND Flash manufacturers over time.
Kingston eMMC products are suitable for a wide range of applications thanks to their low power consumption and compliance with standard JEDEC specifications. For space-constrained applications, Kingston offers the world’s smallest eMMC package with a standard JEDEC footprint.
Kingston eMMC embedded memory is used in a demonstration design available from Future Electronics. The Goldilocks platform is a multi-sensor and hub system designed by Future Electronics Future Design Centers. It consists of a main hub board based on a system-on-module powered by the i.MX 8M Plus application processor from NXP Semiconductors, a wearable sensor node board, and an ultra-wideband (UWB) add-on card.
Kingston eMMC products
Part Number | Capacity | eMMC Standard | Package Dimensions | NAND |
EMMC04G-MT32 | 4 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | MLC |
EMMC04G-CT32 | 4 Gbytes | 5.1 (HS400) | 9.0 mm x 7.5 mm x 0.8 mm | MLC |
EMMC08G-MV28 | 8 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | MLC |
EMMC08G-CT32 | 8 Gbytes | 5.1 (HS400) | 9.0 mm x 7.5 mm x 0.8 mm | MLC |
EMMC16G-MW28 | 16 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.9 mm | 3D TLC |
EMMC32G-TX29 | 32 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC32G-KC30 | 32 Gbytes | 5.1 (HS400) | 8.0 mm x 8.5 mm x 0.9 mm | 3D TLC |
EMMC64G-TY29 | 64 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC128-TY29 | 128 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC256-TY29 | 256 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 1.0 mm | 3D TLC |
Kingston I-Temp eMMC products
Part Number | Capacity | eMMC Standard | Package Dimensions | NAND |
EMMC04G-WT32 | 4 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | MLC |
EMMC08G-WV28 | 8 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | MLC |
EMMC16G-WW28 | 16 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.9 mm | 3D TLC |
EMMC32G-IX29 | 32 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC64G-IY29 | 64 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC128-IY29 | 128 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 0.8 mm | 3D TLC |
EMMC256-IY29 | 256 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 1.0 mm | 3D TLC |
Kingston Automotive-Temp eMMC products
Part Number | Capacity | eMMC Standard | Package Dimensions | NAND |
EMMC04G-AR0A | 4 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 1.0 mm | MLC |
EMMC08G-AR0A | 8 Gbytes | 5.1 (HS400) | 11.5 mm x 13 mm x 1.0 mm | MLC |
