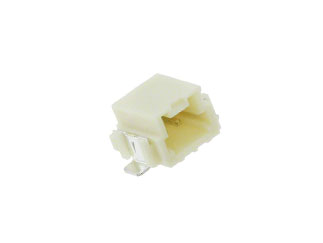

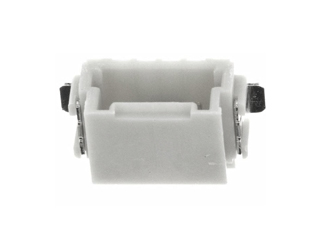

TE Connectivity | 292227-5

AMP Mini CT Connectors are super-miniature wire-to-board and wire-to-wire connectors (for panel-mount application).

Like the standard AMP CT Connector Series that have proven performance in harness production, these connectors are the product tailored for improved harness productivity and feature a new compact design with contacts on 1.5 mm pitch. Wire-side connectors can be used to produce a variety of harness styles by fully automatic high-speed assembling machines.

For harness-making, a range of application tooling is available to meet your production requirements, ranging from hand tools for low volume production to high-speed automatic Insulation Displacement Crimping machines for medium to high volume productions.

Product Facts :

• Super-miniature wire-to-board and wire-to-wire connectors (using panel-mount intermediary post headers)
• Used for harness-making by AMP high-speed crimping machines
• Consist of wire-mount receptacle connectors and a variety of post headers and two-row holders
• Post headers include one-row type headers (DIP type, SMT type, intermediary panel-mount type) and two-row type headers (DIP-type, intermediary panel-mount type)
• Two-row type post headers incorporate two receptacle connectors in a holder
• Accommodate AWG 28-26 wires with insulation diameter of 0.8-0.9 mm
• Small-sized, yet productivity-oriented
• Post header construction resists scooping of contacts at mating/unmating
• DIP-type post headers feature a staggered tine design and can be used on paper-base phenolic boards
  Intermediary panel-mount headers prevent tangling of wire
• A range of application tooling available to meet various harness production requirements
