Manufacturer Part #

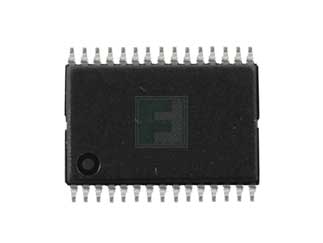

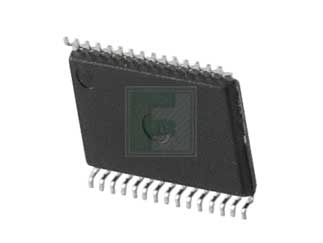

UPD78F0503AMC-CAB-AX
78K0/Kx2 Series 32 kB Flash 1 kB RAM 20 MHz 8-Bit Microcontroller - SSOP-30
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:210 per Tray Package Style:SSOP-30 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Renesas UPD78F0503AMC-CAB-AX - Product Specification
Shipping Information:
ECCN:
PCN Information:
Overview:The purpose of this notification is to communicate that Renesas Electronics has begun the End-of-Life (EOL) Process on select part numbers by manufacturing equipment aging mainly.Key Date:Page 2Final Last Time Buy (LTB)Orders placed after this date will not be processed.31-Jul-2025Last Shipment (LTS) 31-Jan-2026Page 3Final Last Time Buy (LTB)Orders placed after this date will not be processed.30-Sep-2025Last Shipment (LTS) 30-Sep-2026Pages 4-208Final Last Time Buy (LTB)Orders placed after this date will not be processed.31-Dec-2025Last Shipment (LTS) 31-Dec-2026Page 209Final Last Time Buy (LTB)Orders placed after this date will not be processed.31-Dec-2026Last Shipment (LTS) 31-Dec-2029
Description of Change:Renesas will change packing form with a tray to Full Carton (full packing) from fraction. Full Carton shipment will be standard and combine maximum 3 production lots at worst case. Booking Part Number and Order quantity will be changed.Reason for Change: To secure a stable product supply and environment friendly strengthening (Improvement of efficiency in use of packaging resources, reduction of waste)
The purpose of this notification is to communicate a product change of select Renesas Electronics America, Inc. (REA) devices. This notification announces the addition of full carton part numbers for select MCU & SOC devices. Full carton shipments will be standard and combine a maximum of 3 production lots. See the appendix for additional details. The full carton shipments will have a new part number. There is no impact to the specifications, fit, form, characteristics, quality & reliability of the products.
The purpose of this notification is to communicate a product change of select Renesas Electronics America, Inc. (REA) devices. This notification announces the addition of full carton part numbers for select MCU & SOC devices. Full carton shipments will be standard and combine a maximum of 3 production lots. See the appendix for additional details. The full carton shipments will have a new part number. There is no impact to the specifications, fit, form, characteristics, quality & reliability of the products.
Subject: MCU/SOC products announcement of Full Carton.Description of Change:Renesas will change packing form with a tray to Full Carton (full packing) from fraction. Full Carton shipment will be standard and combine maximum 3 production lots at worst case. Booking Part Number and Order quantity will be changed.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UPD78F0503AMC-CAB-AX&field4=Renesas&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--8-bit/upd78f0503amc-cab-ax-renesas-C022887878
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UPD78F0503AMC-CAB-AX&field4=Renesas&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--8-bit/upd78f0503amc-cab-ax-renesas-C022887878
Renesas UPD78F0503AMC-CAB-AX - Technical Attributes
| Family Name: | 78K |
| Core Processor: | 78K0 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 32kB |
| RAM Size: | 1kB |
| Speed: | 20MHz |
| InterfaceType / Connectivity: | CSI/I2C/UART |
| Peripherals: | CSI/I2C/On-Chip-ADC/PWM/UART/Watchdog |
| Number Of Timers: | 2 |
| Supply Voltage: | 1.8V to 5.5V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 4-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | SSOP-30 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
210 per Tray
Package Style:
SSOP-30
Mounting Method:
Surface Mount
