Manufacturer Part #

EP12SD1AVBE

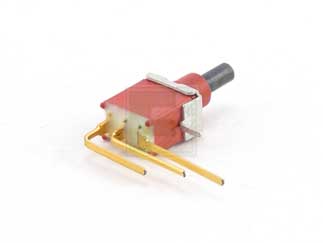

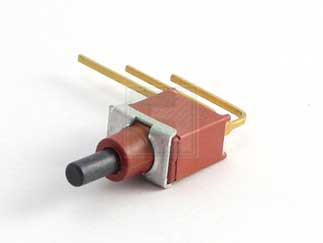

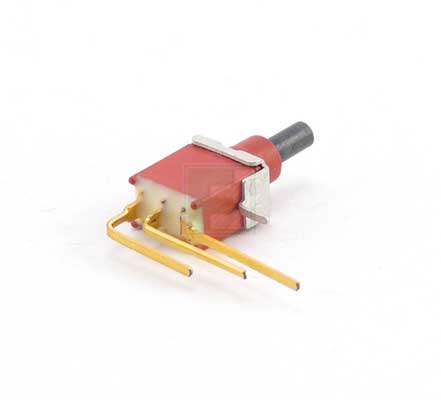

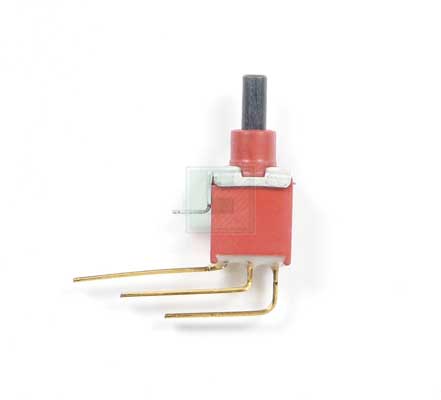

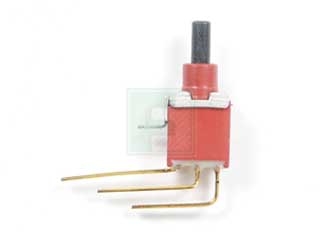

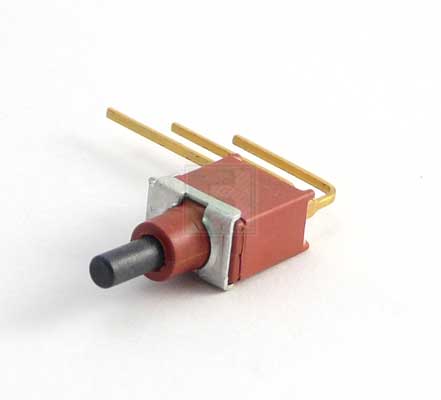

EP Series Tiny SPDT On-Momentary Right Angle Through Hole Pushbutton Switch

EP12SD1AVBE Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1440 per Tray Mounting Method: Through Hole
Date Code:

C&K EP12SD1AVBE - Technical Attributes

Rated Voltage (VAC):	20VAC
Rated Voltage:	20V
Contact Current-Max:	1A
Switch Operation:	Off-Mom
Circuitry:	SPDT
Insulation Resistance:	1000MΩ
Cap Color:	Black
Actuator Style:	Plunger
Termination Style:	Vertical / Right Angle
Operating Temperature:	-30°C to +85°C
Contact Plating:	Gold
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

C&K Components’ EP Series of Sealed Tiny Pushbutton Switches are best suited for telecommunication, computer and instrumentation applications. These tiny pushbutton switches are available in both through hole and surface mount models & can accept standard caps on their snap-fitting actuators.

The EP series offers Single Pole Single Throw, Single Pole Double Throw and Double Pole Single Throw operation solutions. All models of the EP series are process sealed to withstand machine soldering temperatures and pressure wash cleaning methods. A choice of contact materials is available with the EP series.

The EP12SD1AVBE offers a Single Pole Double Throw (SPDT) switch operation providing an On-Momentary function. This epoxy sealed tiny pushbutton switch has a .215” high plunger and unthreaded bushing. The mounting style is vertical right angle PC through hole with contact material of gold.
