Murata — Type 2FY Wi-Fi® + Bluetooth® Modules





Murata



Murata Type 2FY Wi-Fi® + Bluetooth® Module

Featuring high-performance capabilities

The Murata Type 2FY module integrates Infineon's advanced CYW55513 combo chipset to deliver robust Wi-Fi® 6 (802.11a/b/g/n/ac/ax) and Bluetooth® 5.4 performance. Offering up to 143 Mbps PHY data rate on Wi-Fi and efficient Bluetooth® BR/EDR/LE connectivity, this module is designed for high efficiency in compact, power-sensitive applications.

With support for SDIO 3.0 and high-speed UART, the Type 2FY enables seamless integration into IoT devices, wireless handheld systems, and gateways.

Its advanced coexistence features ensure reliable simultaneous WLAN and Bluetooth® operation.

Features

  • 2.4 GHz & 5 GHz & 6 GHz tri-band Wi-Fi® + Bluetooth® LE 5.4 Module
  • Chipset: Infineon CYW55513
  • Processor: Arm® Cortex® - R4 for WLAN subsystem, Arm® Cortex® - M33 for Bluetooth® subsystem
  • FCC/IC Certification Test Undergoing
  • For Industrial IoT, Smart Home, Video/Audio/Voice streaming, xR (AR/VR) glasses, Gateway
  • Rich peripheral interfaces
  • Compact size
  • Low power consumption
  • Linux, i.MX Yocto

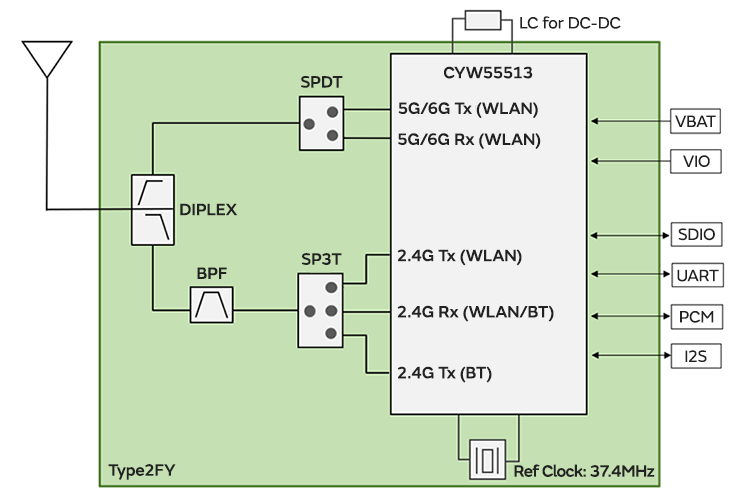

Block Diagram







Murata — Type 2FY Wi-Fi® + Bluetooth® Modules
