Manufacturer Part #
02041601101

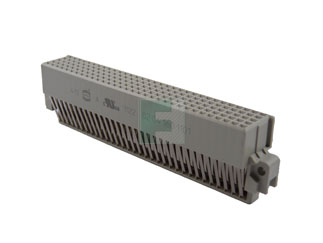

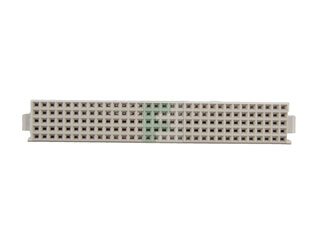

Harbus 64 160 Position 2.54 mm Female Right Angle Solder Termination Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | HARTING | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2508 | ||||||||||
Product Specification Section
HARTING 02041601101 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=02041601101&field4=HARTING&field18=https://p1emea.futureelectronics.com/p/5173976
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=02041601101&field4=HARTING&field18=https://p1emea.futureelectronics.com/p/5173976
HARTING 02041601101 - Technical Attributes
Attributes Table
| Type: | Board to Board (Backplane) |
| Style/Orientation: | Receptacle |
| No of Positions: | 160 |
| No of Rows: | 5 |
| Pitch: | 2.54 mm |
| Termination: | Solder Pins/Tails |
| Material: | Thermoplastic Resin |
| Contact Resistance: | 30mΩ |
| Current Rating: | 1A |
| Operating Temp Range: | -55°C to +125°C |
| Color: | Natural |
| Mounting Method: | Through Hole |
Features & Applications
The 02041601101 is a Part of Har-bus 64 Series with 160 Position 2.54 mm Pitch Right-Angle Female Backplane Termination Connector.
Product Specifications:
- Quality-Level: Premium
- Contact Pitch: 2.54 mm
- Application: VME 64x
- Type: Har-bus 64
- Current: 1 A @ 70°C
- Gender: female
- Termination Type: Solder
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
5 Weeks
Quantity
Unit Price
20+
$74.10
Product Variant Information section
Available Packaging
Package Qty:
20 per Box
Mounting Method:
Through Hole
