Manufacturer Part #
5177985-6

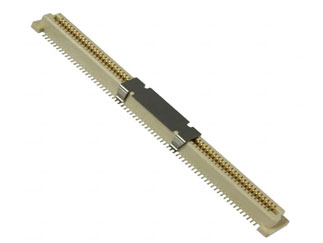

140 Position 0.8 mm Pitch Gold Plated Vertical PCB Mount Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:700 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5177985-6 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Description: 0.8mm Free Height ProductsGeneral Description of ChangesThe listed parts have been updated to make a correction of Tin Plating Thickness from 0.002mm to 0.00127mm MIN.Reason for Changes:Update made to correct a documentation error.First Ship Date of Changed Items (Changed Parts Only):07-NOV-2025
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE's operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5177985-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-wire-mount/5177985-6-te-connectivity-5042174
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5177985-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-wire-mount/5177985-6-te-connectivity-5042174
TE Connectivity 5177985-6 - Technical Attributes
| Type: | Board to Board |
| Style/Orientation: | Vertical |
| No of Positions: | 140 |
| No of Rows: | 2 |
| Pitch: | 0.8 mm |
| Termination: | Solder |
| Material: | Liquid Crystal Polymer |
| Contact Plating: | Gold |
| Contact Resistance: | 30mΩ |
| Current Rating: | 0.5A |
| Operating Temp Range: | -40°C to +125°C |
| Voltage Rating: | 100V |
| Color: | Natural |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
700 per Reel
Mounting Method:
Surface Mount
