Manufacturer Part #
STIPNS2M50T-H

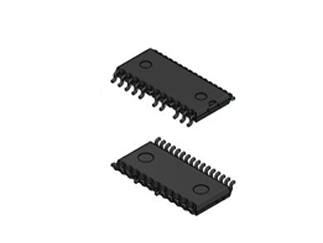

STIPNS2M50: 500V 2A 10.6W SMT SLLIMM-Nano IPM 3-Phase Inverter Mosfet NSDIP-26L
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:400 per Cut Tape Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STIPNS2M50T-H - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STIPNS2M50T-H&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/stipns2m50t-h-stmicroelectronics-4172726
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STIPNS2M50T-H&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/stipns2m50t-h-stmicroelectronics-4172726
STMicroelectronics STIPNS2M50T-H - Technical Attributes
Attributes Table
| CE Voltage-Max: | 500V |
| Collector Current @ 25C: | 2A |
| Power Dissipation-Tot: | 10.6W |
| Turn-on Delay Time: | 267s |
| Turn-off Delay Time: | 265s |
| Reverse Recovery Time-Max: | 192ns |
| Thermal Resistance: | 11.7°C/W |
| Operating Temp Range: | -40°C to +150°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
1
$5.51
5
$5.44
25
$5.36
75
$5.32
200+
$5.25
Product Variant Information section
Available Packaging
Package Qty:
400 per Cut Tape
Mounting Method:
Surface Mount
