Murata — Type 2BP UWB Module



Murata — Type 2BP UWB Module



Murata



Murata Type 2BP UWB Module

Ultra-wideband module for precise location sensing

Murata Type 2BP is a compact UWB module featuring conformal shielding and precise ranging capabilities. Based on the NXP Trimension™ SR150 chipset, it supports two-way and one-way ranging, SPI interface, and 3D or 2D angle-of-arrival (AoA) detection with up to three antennas.

Its small resin-molded package with conformal shielding allows seamless integration into IoT, industrial, and asset-tracking applications.

Features

  • Small size UWB module with conformal shielding
  • Chipset: NXP Trimension™ SR150
  • Supports UWB channels 5 and 9
  • SPI interface
  • 3-antenna support for 3D AoA or 2D AoA
  • Resin molded + conformal shielding structure
  • Power and crystal calibration support
  • Two-way and one-way ranging capabilities
  • Accurate angle-of-arrival (AoA) measurement

Applications

  • IoT and connected devices
  • Industrial asset tracking and automation
  • Robotics and drones
  • Indoor positioning and navigation
  • Smart city and building automation
  • Advanced proximity and localization systems

Block Diagram

Murata — Type 2BP UWB Module Block Diagram

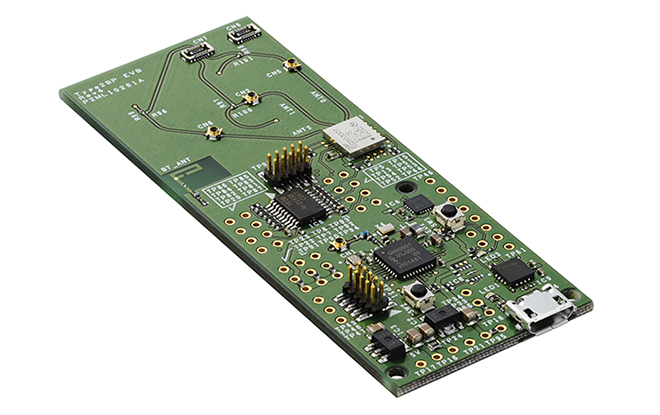

Evaluation Kit

Murata UWB module Type2BP evaluation board. Type2BP and NXP QN9090(BLE chip), USB-UART conversion IC are on this EVB. Power supplied via USB cable, and from COM port of PC, Type-2BP can be controlled through QN9090. This development kit is approved by Apple® for the purpose of evaluating UWB-enabled accessories that leverage Apple's Nearby Interaction framework in order to interact with Apple products that include the U1 chip.

Murata — Type 2BP UWB Module Evaluation Kit

Murata Type 2BP
