NMA0515SC

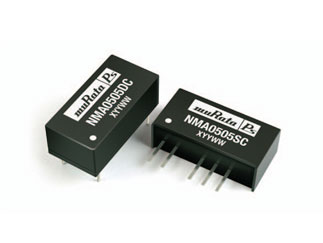

NMA Series 1 W Dual Output -15 / 15 V Isolated Through Hole DC/DC Converter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Murata Power Solutions | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:25 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 1648 | ||||||||||
Product Specification Section
Murata Power Solutions NMA0515SC - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NMA0515SC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/nma0515sc-murata-power-solutions-4010225
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NMA0515SC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/nma0515sc-murata-power-solutions-4010225
Murata Power Solutions NMA0515SC - Technical Attributes
Attributes Table
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Dual |
| Output Power: | 1W |
| Output Voltage: | -15V/15V |
| Input Voltage: | 5V |
| Operating Temp Range: | -40°C to +85°C |
| Efficiency: | 78% |
| Power Dissipation: | 1W |
| Load Regulation (%): | 7% |
| Output Current: | ±33mA |
| Switching Frequency-Max: | 110kHz |
| Ripple & Noise: | 15mV |
| Dimension: | L 19.5mm x W 6mm x H 10mm |
| Mounting Method: | Through Hole |
Features & Applications
The NMA0515SC series is a DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added benefi t of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt.
Features:
- RoHS compliant
- Efficiency up to 80%
- Power density up to 0.85 W/cm3
- Wide temperature performance at full 1 Watt load, –40°C to 85°C
- Dual output from a single input rail
- UL 94 V-0 package material
- No heatsink required
- Footprint from 1.17 cm2
- Industry standard pinout
- Power sharing on output
- 1 kVDC isolation
- 5 V, 12 V, & 15 V input
- 5 V, 9 V, 12 V and 15 V output
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- No external components required
- MTTF up to 3.1 million hours
- No electrolytic or tantalum capacitors
