Manufacturer Part #
SFN4D-DC12V

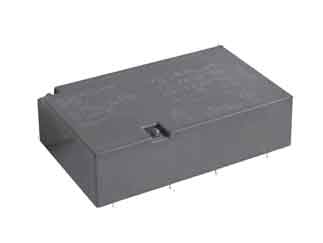

SFN4D Series 6PST-4NO/2NC 6A 12V PC Pin Through Hole Double Contact Safety Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Panasonic Industry SFN4D-DC12V - Product Specification
Shipping Information:
ECCN:
PCN Information:
**Czech factory only**On some parts that are used in Europe, we have changed the min/multsPanasonic Industry Europe - Electro Mechanical Control Business Division for Czech Made Relay Products decided to implement a needed alignment in the order processes.With these steps we assure the optimization of our processes, optimize our logistic operations and to provide improvement on lead times. Please accept the increase of the minimum order quantity for ADE, APF and SF relays from Czech factory to an outer carton unit / case unit.
Product Change Notice: SF, SF-D, SF-N, and SF-Y Series Relays Materials Color ChangeAbout This Notice: We would like to inform you that we will change the materials color of the SF, SF-D, SF-N, and SF-Y Series Relays due to the ddiscontinuation of the case molding materials of the current color. Effective Date: SF-Y: Production from 01/01/2024 onwards. SF: Production from 11/01/2023 onwards. SF-D: Production from 11/01/2023 onwards. SF-N: Production from 12/20/2022 onwards.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SFN4D-DC12V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/sfn4d-dc12v-panasonic-industry-8132245
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SFN4D-DC12V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/sfn4d-dc12v-panasonic-industry-8132245
Panasonic Industry SFN4D-DC12V - Technical Attributes
| Relay Type: | Safety |
| Contact Form: | 6PST (4 Form A/2 Form B) |
| Coil Current: | 32.5mA |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 8A |
| Coil Resistance: | 369Ω |
| Switching Voltage: | 500V |
| Rated Power: | 400mW |
| Contact Material: | Silver Tin Oxide (AgSnO),Gold (Au) |
| Operating Temp Range: | -25°C to +92°C |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
20 per Box
Mounting Method:
Through Hole
