Manufacturer Part #
SK12BAW01

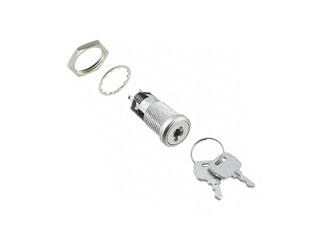

SK Series Low Security SPDT 3 Position 90 Degree Solder Lug Switch Lock
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Kit Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
NKK Switches SK12BAW01 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:There will be a revision to the epoxy seal applied at the base of terminals for JW Series Rockers, EB, FB, and SB Series Pushbuttons, SK Series Keylocks, and CS Series Slides. The new epoxy seal will be matte black in color, and the change will include both standard and custom switches.
Description and Reason for Change:There will be a revision to the epoxy seal applied at the base of terminals for JW Series Rockers, EB, FB, and SB Series Pushbuttons, SK Series Keylocks, and CS Series Slides. The new epoxy seal will be matte black in color, and the change will include both standard and custom switches. Changes for epoxy seal on JW, EB, FB, SB, SK and CS Series will be effective September 2025. However, the end of sales date may be subject to change if orders exceed expectations for the specified products.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SK12BAW01&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--key/sk12baw01-nkk-switches-2811107
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SK12BAW01&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--key/sk12baw01-nkk-switches-2811107
NKK Switches SK12BAW01 - Technical Attributes
| Contact Current-Max: | 3A |
| Circuitry: | SPDT |
| Termination Style: | Solder Lug |
| Switch Operation: | On-On |
| Current Rating: | 3A |
| Contact Material: | Silver |
| Rated Voltage (VAC): | 125VAC |
| Insulation Resistance: | 1000MΩ |
| Actuator Style: | Flatted |
| Dielectric Withstanding Voltage: | 1000V |
| Operating Temperature: | -25°C to +70°C |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
1 per Kit
Mounting Method:
Panel Mount
