Manufacturer Part #
100DP4T8B13M2REH

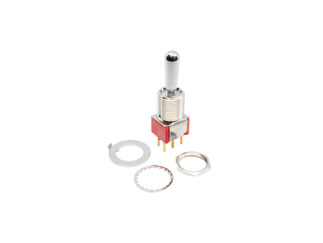

100 Series DPDT Mom-Off-Mom Panel Mount Miniature Toggle Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:54 per Bulk Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
E-Switch 100DP4T8B13M2REH - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP4T8B13M2REH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/100dp4t8b13m2reh-e-switch-2040035
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP4T8B13M2REH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/100dp4t8b13m2reh-e-switch-2040035
E-Switch 100DP4T8B13M2REH - Technical Attributes
Attributes Table
| Switch Operation: | Mom-Off-Mom |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 20VAC |
| Voltage Rating: | 20V |
| Current Rating: | 0.4A |
| Insulation Resistance: | 1000MΩ |
| Contact Material: | Gold |
| Actuator Type: | Round |
| Termination Style: | PC Pin |
| Dielectric Withstanding Voltage: | 1000V |
| Bushing Style: | Threaded |
| Operating Temperature: | -30°C to +85°C |
| Mounting Method: | Panel Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
54
$4.18
108
$4.13
162+
$4.08
Product Variant Information section
Available Packaging
Package Qty:
54 per Bulk
Mounting Method:
Panel Mount
