Sullins | RBB13DHHN

Manufacturer Part #

RBB13DHHN

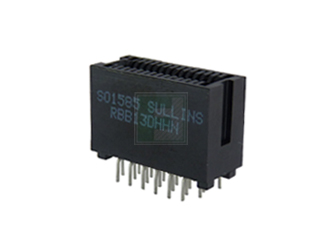

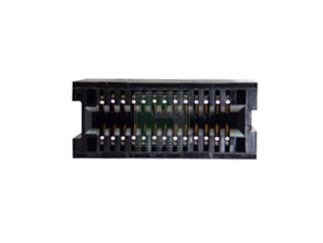

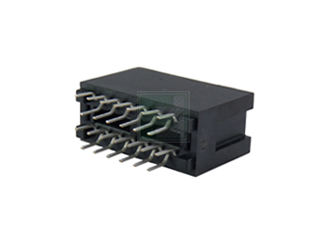

26 Position ( 2 x 13 ) 1.27 mm Staggered Dip Solder Dual Readout Card Edge

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins RBB13DHHN - Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 26
Pitch: 1.27 mm
Termination: Solder Pins/Tails
Features & Applications

The RBB13DHHN is a part of RBB series connector. It has an operating temperature ranging from -65°C to + 125°C.

Features:

  • PPS/Phosphor Bronze
  • Processing Temperature: 260°C FOR 120 sec. MAX
  • contact surface: .000010” Gold; termination: .000100” Pure Tin, Matte
  • .050” [1.27mm] Contact Centers
  • 26 Total Contacts
  • Dual Readout
  • Straight Staggered Thru Hole
  • Accommodates .062” ± .008” [1.57 ± .20] PC board
  • Molded-in key available
  • High reliability/high cycle hairpin bellows contact
  • 1 amp current rating per contact
  • 150 grams normal force minimum
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
47
Factory Lead Time:
3 Weeks
Minimum Order:
10
Multiple Of:
27
Total
$54.20
USD
Quantity
Unit Price
1
$5.49
10
$5.42
30
$5.37
75
$5.33
200+
$5.25
