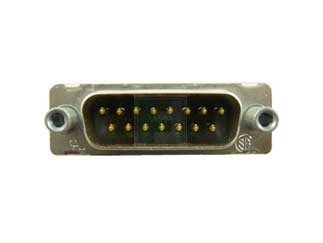

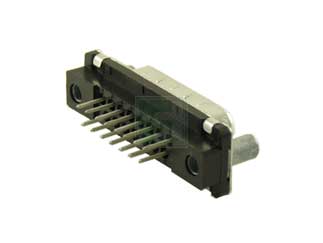

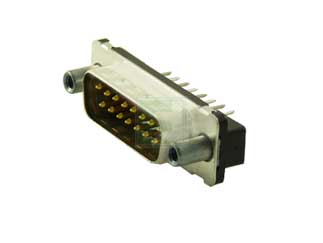

HD20 Series 15 Position Straight Plug Board Mount D-Sub Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:819 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-5747872-6 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-5747872-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1-5747872-6-te-connectivity-8284663
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-5747872-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/1-5747872-6-te-connectivity-8284663
TE Connectivity 1-5747872-6 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Board Mount Plug |
| No of Positions: | 15 |
| No of Rows: | 2 |
| Termination: | PCB |
| Pitch: | 2.74 mm |
| Material: | Front Metal |
| Shell Size: | 2 A |
| Gender: | Male |
| Color: | Black |
| Current Rating: | 6A |
| Voltage Rating: | 125V |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -55°C to +105°C |
| Mounting Method: | Through Hole |
Features & Applications
The 1-5747872-6 is a Part of HD-20 Series with 15 Position, Straight Plug Board mount D-SUB Connector.
Product Features:
- PCB Mounting Orientation = Vertical
- Product Series = HD 20
- Mating Connector Lock Type = Female Screwlocks, Fixed
- Shell Type = Front Metal Shell
- Shell Size = 2
- PCB Mount Style = Through Hole
- Profile = Standard
- Post Size (mm [in]) = 0.66 [.026]
- Mounting Hole Diameter (mm [in]) = 3.07 [.121]
- Shell Material = Steel
- Female Screwlock Material = Zinc
- Termination Post Length (mm [in]) = 4.32 [0.170]
- Solder Tail Contact Plating = Tin over Nickel
- Number of Positions = 15
- PCB Mount Retention Type = Mounting Holes
- Shell Plating = Tin
- Contact Plating, Mating Area, Material = Gold (30)
- Contact Shape = Round
- Contact Base Material = Brass
- Connector Style = Plug
- UL Flammability Rating = UL 94V-0
- Housing Material = Thermoplastic - GF
- PCB Thickness, Recommended (in [mm]) = 0.093 – 0.125 [2.36 – 3.18]
View the Complete HD-20 Series of D-SUB
