TE Connectivity | 5747837-4

Manufacturer Part #

5747837-4

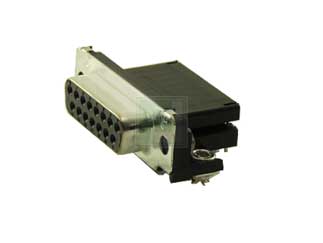

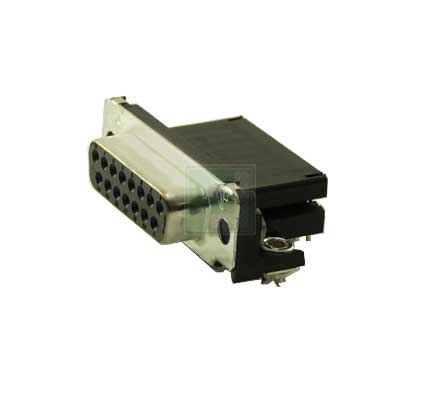

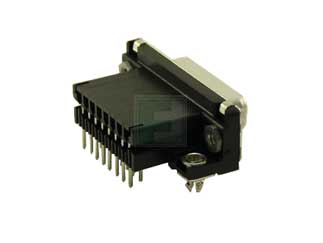

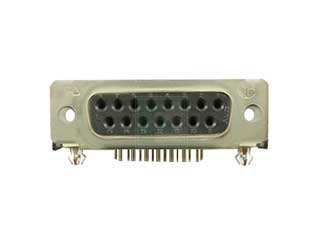

HD20 Series 15 Position Right Angle Socket Board Mount D-Sub Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2513
Product Specification Section
TE Connectivity 5747837-4 - Technical Attributes
Attributes Table
Style/Orientation: Standard Board Mount Receptacle
No of Positions: 15
No of Rows: 2
Termination: PCB
Pitch: 2.74 mm
Material: Front Metal
Shell Size: 2 A
Gender: Female
Color: Black
Current Rating: 6A
Voltage Rating: 125V
Contact Plating: Gold
Insulation Resistance: 5000MΩ
Operating Temperature: -55°C to +105°C
Mounting Method: Through Hole
Features & Applications

The 5747837-4 is a part of HD20 Series 15 Position Right Angle Socket Board Mount D-Sub connector.

Features:

  • 15 Positions
  • Connector Style = Receptacle
  • PCB Mounting Orientation = Right Angle
  • Product Series = HD 20
  • With Mating Connector Lock





Read More...
Pricing Section
Global Stock:
455
USA:
455
On Order:Order inventroy details
910
Factory Stock:Factory Stock:
910
Factory Lead Time:
23 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$4.16
USD
Quantity
Unit Price
1
$4.16
15
$4.06
40
$4.01
100
$3.95
250+
$3.84
