Manufacturer Part #
352332-1

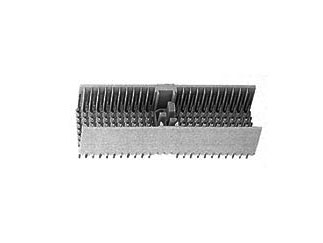

2 mm 154 Position Plug Through Hole Press Fit PCB Mount Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:150 per Tube Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 352332-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description of ChangesManufacturing location change. Following Part Numbers will be transferred from
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=352332-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/352332-1-te-connectivity-5013020
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=352332-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/352332-1-te-connectivity-5013020
TE Connectivity 352332-1 - Technical Attributes
| Type: | Board to Board |
| Style/Orientation: | Plug |
| No of Positions: | 154 |
| No of Rows: | 7 |
| Pitch: | 2 mm |
| Termination: | Press-fit |
| Material: | Polyester |
| Contact Plating: | Tin |
| Current Rating: | 1.5A |
| Operating Temp Range: | -55°C to +125°C |
| Voltage Rating: | 500V |
| Color: | Grey |
| Mounting Method: | Through Hole |
Features & Applications
The 352332-1 is a 2 mm Pitch and 154 Position Hard Metric Press Fit PCB Mount Connector.
Features:
- Product Type = Connector
- Connector Type = Connector Assembly
- PCB Mounting Orientation = Vertical
- Board Mount = Free Board
- Front Mating Level = Level 1
- Shield Type = Ground Return Shielding
- Interface Type = 2mm HM
- Termination End Plating = Tin-Lead over Nickel
- Module Length (mm [in]) = 50.00 [1.968]
- Type = Type A
- Rows Loaded = F, B, C, D, E, Z, A
- CompactPCI Designation = P1 Hot Swap
- Contact Configuration = Signal
- Feedthrough Post Length (mm [in]) = 3.70 [0.145]
- Contact Style = Short Tail
- Number of Signal Contacts = 110
- Contact Base Material = Phosphor Bronze
- Connector Style = Plug
- Mating Alignment Type = Multi-Purpose Center
- Housing Color = Gray
- Housing Material = Polyester GF
- UL Flammability Rating = UL 94V-0
- Number of Rows = 5+2
- Number of Positions = 154
- RoHS/ELV Compliance = RoHS/Not ELV Compliant
Available Packaging
Package Qty:
150 per Tube
Mounting Method:
Through Hole
