Manufacturer Part #

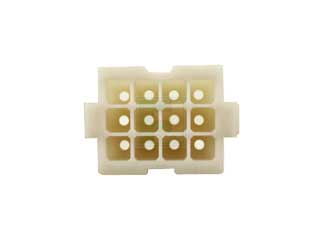

172162-1
Mini-Universal MATE-N-LOK Series 12 Position Positive Lock Receptacle Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Bag Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 172162-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:Mini-Universal MATE-N-LOK, Plug's and CapsDescription of ChangesAdding additional resin option on Production drawing of listed part number's. Necessary qualification tests per the Product specification were performed and passed. No changes to Customer drawingReason for Changes:We are standardizing our global resins and adding an additional resin option to help avoid global shortages and interruptions in supply. There is no change to the fit, function, or performance of the part.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172162-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/172162-1-te-connectivity-4128070
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172162-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/172162-1-te-connectivity-4128070
TE Connectivity 172162-1 - Technical Attributes
| No of Positions: | 12 |
| Contact Termination: | Female/Socket Crimp |
| Style/Orientation: | Receptacle Housing |
| Material: | Nylon |
| Mating Type: | Positive Lock |
| Mounting Method: | Panel Mount |
Features & Applications
Soft Shell Pin & Socket Connectors provide a highly economic and reliable way of grouping multiple-lead connections in today’s marketplace. The Soft Shell series is both compact and highly durable where operating temperatures might vary from –40°C to -105°C
Available in panel or free-hanging configurations, the Soft Shell Pin & Socket family offers interconect solutions for wire-to-wire and wire-to-board pin and receptacle connector applications.
Mini Universal Mate-N-Lok is a wire-to-wire and wire-to-board connector system that is fully polarized to provide proper plug-to-cap mating that incorporates a positive locking mechanism. Available in both free hanging and panel mount with contacts that accept wire size range 30-16 AWG.
172162-1 is a softshell panel mount cap housing with 12 (female) contact positions single row housed in a plastic body
The 172162-1 comes without contacts. See Accessories for Contact options.
Mating options can also be found in the Related Products Tab
Available Packaging
Package Qty:
3000 per Bag
Mounting Method:
Panel Mount
